Please send RFQ , we will respond immediately.

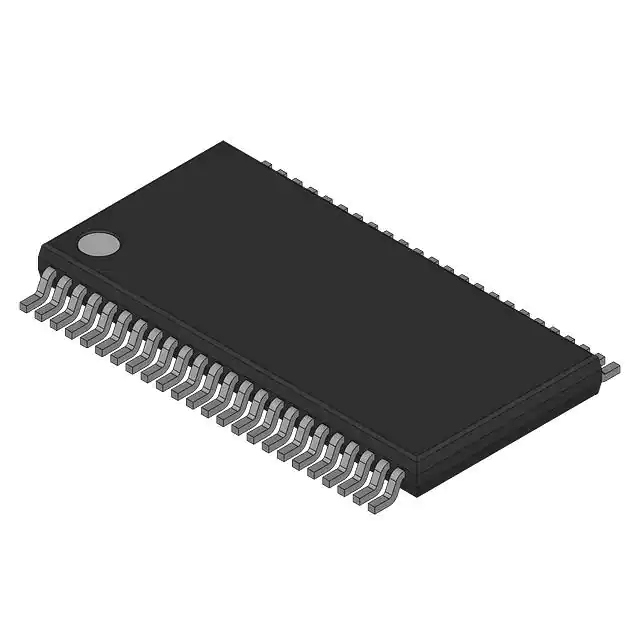

| Part Number | 74VCX162245MTD | 74VCX16245MTD | 74VCX162245MTDX | 74VCX164245MTD | 74VCX162240MTD | 74VCX162244MTD |
|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | Transceiver, Non-Inverting | Transceiver, Non-Inverting | Transceiver, Non-Inverting | Transceiver, Non-Inverting | Buffer, Inverting | Buffer, Non-Inverting |
| Number of Elements | 2 | 2 | 2 | 2 | 4 | 4 |
| Number of Bits per Element | 8 | 8 | 8 | 8 | 4 | 4 |
| Input Type | - | - | - | - | - | - |
| Output Type | 3-State | 3-State | 3-State | 3-State | 3-State | 3-State |
| Current - Output High, Low | 12mA, 12mA; 24mA, 24mA | 24mA, 24mA | 12mA, 12mA; 24mA, 24mA | 18mA, 18mA; 24mA, 24mA | 12mA, 12mA | 12mA, 12mA |
| Voltage - Supply | 1.4V ~ 3.6V | 1.2V ~ 3.6V | 1.4V ~ 3.6V | 1.65V ~ 2.7V, 2.3V ~ 3.6V | 1.4V ~ 3.6V | 1.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP | 48-TSSOP | 48-TSSOP | 48-TSSOP | 48-TSSOP | 48-TSSOP |
