Please send RFQ , we will respond immediately.

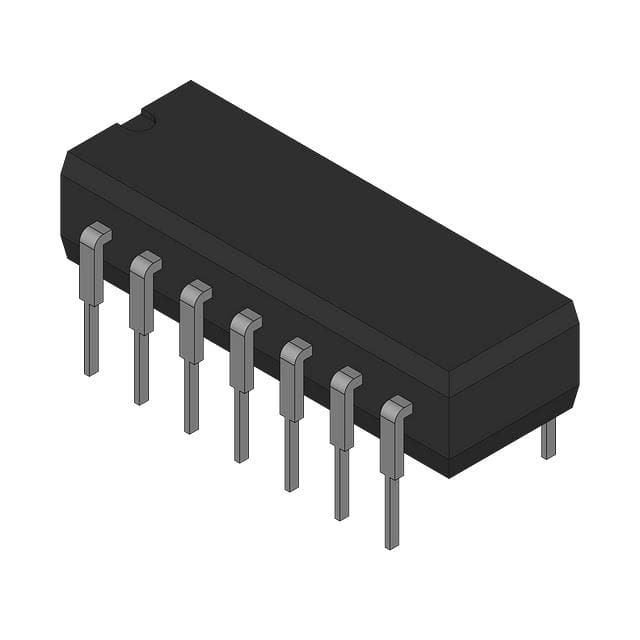

| Part Number | 74S08PC | 74S00PC | 74S02PC | 74S03PC | 74S05PC | 74S08DC |
|---|---|---|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | Fairchild Semiconductor | National Semiconductor | National Semiconductor | National Semiconductor |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Active |
| Logic Type | - | - | NOR Gate | - | Inverter | - |
| Number of Circuits | - | - | - | - | 6 | - |
| Number of Inputs | - | - | - | - | 1 | - |
| Features | - | - | - | - | Open Collector | - |
| Voltage - Supply | - | - | - | - | 4.75V ~ 5.25V | - |
| Current - Quiescent (Max) | - | - | - | - | 54 mA | - |
| Current - Output High, Low | - | - | - | - | - | - |
| Logic Level - Low | - | - | - | - | - | - |
| Logic Level - High | - | - | - | - | - | - |
| Max Propagation Delay @ V, Max CL | - | - | - | - | 7ns @ 5V, 50pF | - |
| Operating Temperature | - | - | - | - | 0°C ~ 70°C | - |
| Mounting Type | - | - | Through Hole | - | Through Hole | - |
| Supplier Device Package | - | - | - | - | 14-PDIP | - |
| Package / Case | - | - | - | - | 14-DIP (0.300", 7.62mm) | - |
