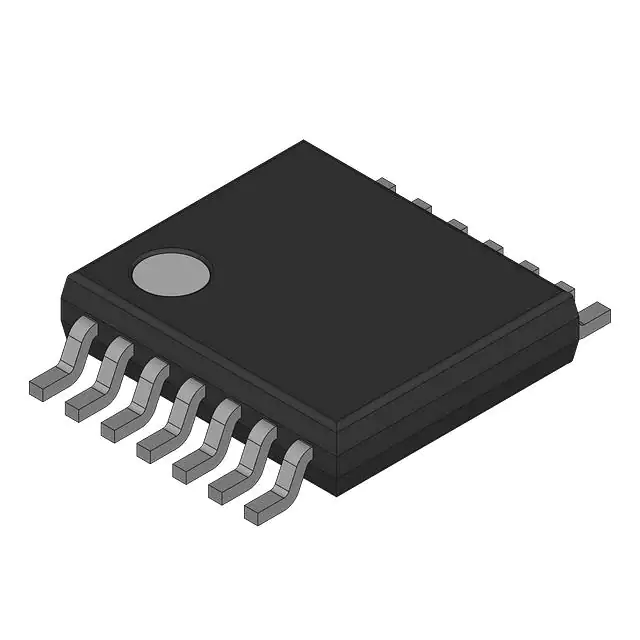

| Part Number | 74LCX04MTC | 74LCX14MTC | 74LCX04MTCX | 74LCX06MTC | 74LCX08MTC | 74LCX04MTR | 74LCX00MTC | 74LCX02MTC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi | STMicroelectronics | onsemi | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter | AND Gate | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 6 | 6 | 6 | 6 | 4 | 6 | 4 | 4 |
| Number of Inputs | 1 | 1 | 1 | 1 | 2 | 1 | 2 | 2 |
| Features | - | Schmitt Trigger | - | Open Drain | - | - | - | - |
| Voltage - Supply | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Current - Quiescent (Max) | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | -, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.4V ~ 0.6V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V | 1.7V ~ 2.2V | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | 2V | 1.7V ~ 2V | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 5.2ns @ 3.3V, 50pF | 6.5ns @ 3.3V, 50pF | 5.2ns @ 3.3V, 50pF | 3.7ns @ 3.3V, 50pF | 5.5ns @ 3.3V, 50pF | 5.2ns @ 3.3V, 50pF | 5.2ns @ 3.3V, 50pF | 5.2ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-SO | 14-TSSOP | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-SOIC (0.154", 3.90mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) |
