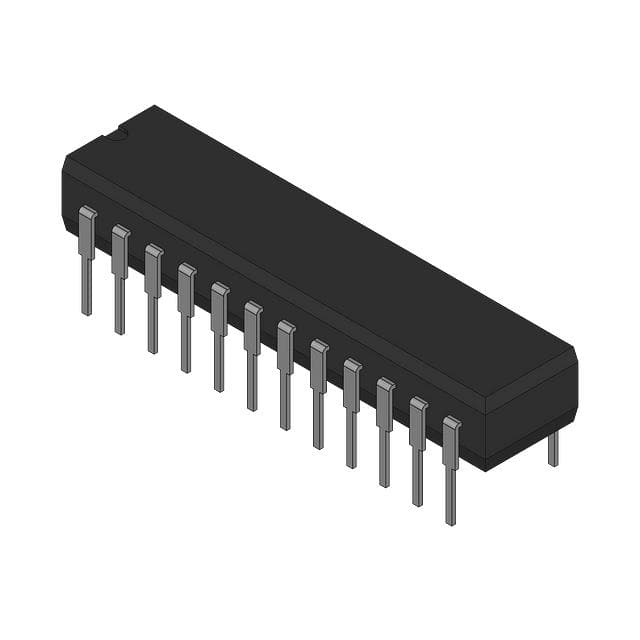

| Part Number | 74F825SPC | 74F821SPC | 74F823SPC | 74F825SC |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Master Reset | Standard | Master Reset | Master Reset |
| Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 1 | 1 | 1 | 1 |
| Number of Bits per Element | 8 | 10 | 9 | 8 |
| Clock Frequency | 160 MHz | 150 MHz | 160 MHz | 160 MHz |
| Max Propagation Delay @ V, Max CL | 9.5ns @ 5V, 50pF | 9.5ns @ 5V, 50pF | 9.5ns @ 5V, 50pF | 9.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 3mA, 24mA | 3mA, 24mA | 3mA, 24mA | 3mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 90 mA | 100 mA | 100 mA | 90 mA |
| Input Capacitance | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | 24-PDIP | 24-PDIP | 24-PDIP | 24-SOP |
| Package / Case | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) |
