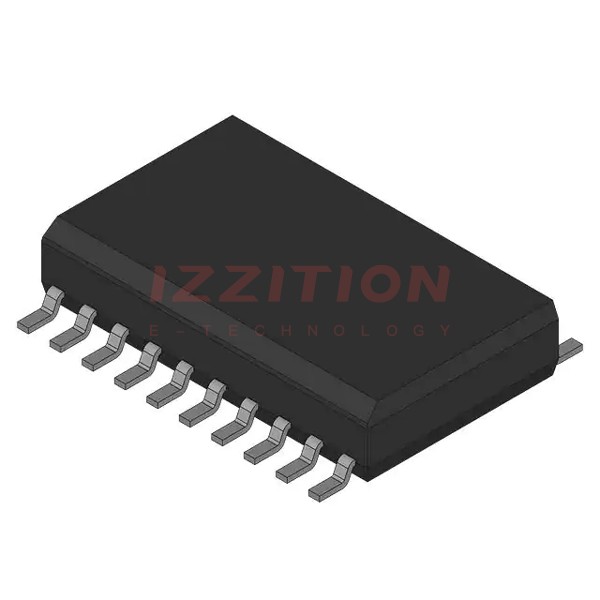

| Part Number | 74F574SJX | 74F74SJX | 74F174SJX | 74F374SJX | 74F534SJX | 74F574SCX | 74F574SJ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Standard | Set(Preset) and Reset | Master Reset | Standard | Standard | Standard | Standard |
| Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Complementary | Non-Inverted | Tri-State, Non-Inverted | Tri-State, Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 1 | 2 | 1 | 1 | 1 | 1 | 1 |
| Number of Bits per Element | 8 | 1 | 6 | 8 | 8 | 8 | 8 |
| Clock Frequency | 100 MHz | 125 MHz | 80 MHz | 140 MHz | 100 MHz | 100 MHz | 100 MHz |
| Max Propagation Delay @ V, Max CL | 8.5ns @ 5V, 50pF | 6.8ns @ 5V, 50pF | 10ns @ 5V, 50pF | 8.5ns @ 5V, 50pF | 8.5ns @ 5V, 50pF | 8.5ns @ 5V, 50pF | 8.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 3mA, 24mA | 1mA, 20mA | 1mA, 20mA | 3mA, 24mA | 3mA, 24mA | 3mA, 24mA | 3mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 86 mA | 16 mA | 45 mA | 86 mA | 86 mA | 86 mA | 86 mA |
| Input Capacitance | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 20-SOP | 14-SOP | 16-SOP | 20-SOP | 20-SOP | 20-SOIC | 20-SOP |
| Package / Case | 20-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.209", 5.30mm Width) | 20-SOIC (0.209", 5.30mm Width) | 20-SOIC (0.209", 5.30mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.209", 5.30mm Width) |
