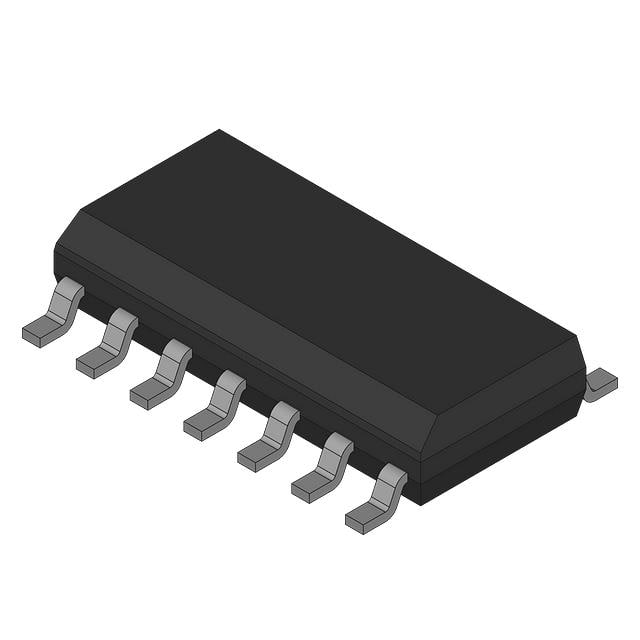

| Part Number | 74F14SJX | 74F04SJX | 74F10SJX | 74F11SJX | 74F14SCX | 74F14SJ |
|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | Inverter | Inverter | NAND Gate | AND Gate | Inverter | Inverter |
| Number of Circuits | 6 | 6 | 3 | 3 | 6 | 6 |
| Number of Inputs | 1 | 1 | 3 | 3 | 1 | 1 |
| Features | Schmitt Trigger | - | - | - | Schmitt Trigger | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | - | - | - | - | - |
| Current - Output High, Low | 1mA, 20mA | 1mA, 20mA | 1mA, 20mA | 1mA, 20mA | 1mA, 20mA | 1mA, 20mA |
| Logic Level - Low | 1.1V | 0.8V | 0.8V | 0.8V | 1.1V | 1.1V |
| Logic Level - High | 2V | 2V | 2V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 10.5ns @ 5V, 50pF | 5ns @ 5V, 50pF | 5ns @ 5V, 50pF | 5.6ns @ 5V, 50pF | 10.5ns @ 5V, 50pF | 10.5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SOP | 14-SOP | 14-SOP | 14-SOP | 14-SOIC | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.209", 5.30mm Width) |
