Please send RFQ , we will respond immediately.

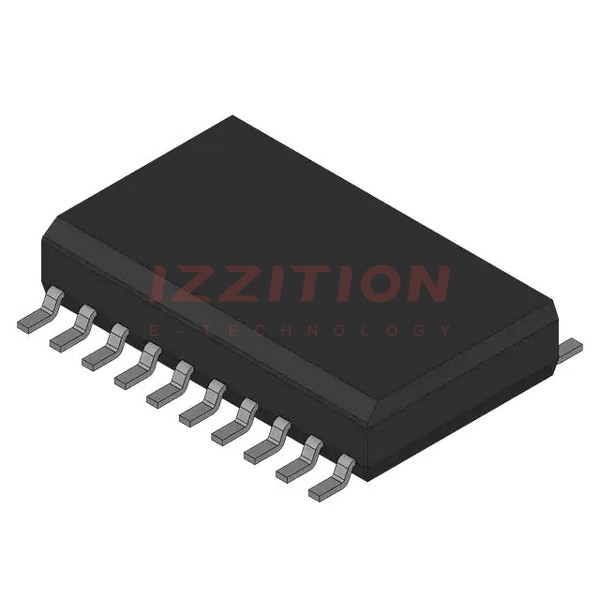

| Part Number | 74ACT574SJX | 74ACT74SJX | 74ACTQ74SJX | 74ACTQ574SJX | 74ACT174SJX | 74ACT374SJX | 74ACT534SJX | 74ACT574SCX | 74ACT574SJ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Standard | Set(Preset) and Reset | Set(Preset) and Reset | Standard | Master Reset | Standard | Standard | Standard | Standard |
| Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Complementary | Complementary | Tri-State, Non-Inverted | Non-Inverted | Tri-State, Non-Inverted | Tri-State, Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 1 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Bits per Element | 8 | 1 | 1 | 8 | 6 | 8 | 8 | 8 | 8 |
| Clock Frequency | 110 MHz | 210 MHz | 200 MHz | 85 MHz | 200 MHz | 160 MHz | 100 MHz | 110 MHz | 110 MHz |
| Max Propagation Delay @ V, Max CL | 11ns @ 5V, 50pF | 11ns @ 5V, 50pF | 8ns @ 5V, 50pF | 9ns @ 5V, 50pF | 10.5ns @ 5V, 50pF | 10ns @ 5V, 50pF | 11.5ns @ 5V, 50pF | 11ns @ 5V, 50pF | 11ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 40 µA | 20 µA | 20 µA | 40 µA | 40 µA | 40 µA | 40 µA | 40 µA | 40 µA |
| Input Capacitance | 4.5 pF | 4.5 pF | 4.5 pF | 4.5 pF | 4.5 pF | 4.5 pF | 4.5 pF | 4.5 pF | 4.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 20-SOP | 14-SOP | 14-SOP | 20-SOP | 16-SOP | 20-SOP | 20-SOP | 20-SOIC | 20-SOP |
| Package / Case | 20-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 20-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.209", 5.30mm Width) | 20-SOIC (0.209", 5.30mm Width) | 20-SOIC (0.209", 5.30mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.209", 5.30mm Width) |
