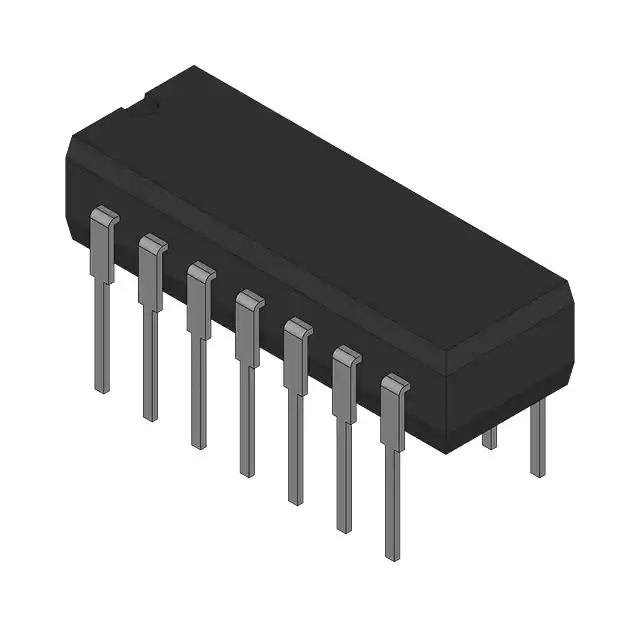

| Part Number | 74AC04PC | 74AC08PC | 74AC04SC | 74AC14PC | 74AC00PC | 74AC02PC |
|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Logic Type | Inverter | AND Gate | Inverter | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 6 | 4 | 6 | 6 | 4 | 4 |
| Number of Inputs | 1 | 2 | 1 | 1 | 2 | 2 |
| Features | - | - | - | Schmitt Trigger | - | - |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Logic Level - Low | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.5V ~ 1.1V | 0.9V ~ 1.65V | 0.9V ~ 1.65V |
| Logic Level - High | 2.1V ~ 3.85V | 2.1V ~ 3.85V | 2.1V ~ 3.85V | 2.2V ~ 3.9V | 2.1V ~ 3.85V | 2.1V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7ns @ 5V, 50pF | 10ns @ 5V, 50pF | 8ns @ 5V, 50pF | 6.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | 14-DIP | 14-DIP | 14-SOIC | 14-DIP | 14-DIP | 14-DIP |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
