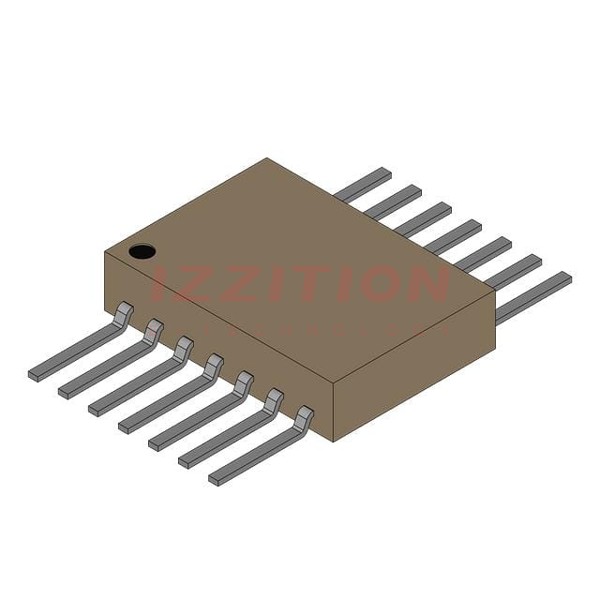

| Part Number | 5962R9950401VZA | 5962R9950402VZA | 5962R9950401VDA |
|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | National Semiconductor |
| Product Status | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 4 | 4 | 4 |
| Output Type | Differential | Differential | Differential |
| Slew Rate | 0.1V/µs | 0.1V/µs | 0.1V/µs |
| Gain Bandwidth Product | 1 MHz | 1 MHz | 1 MHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 100 pA | 100 pA | 100 pA |
| Voltage - Input Offset | 2 mV | 2 mV | 2 mV |
| Current - Supply | - | - | - |
| Current - Output / Channel | 60 mA | 60 mA | 60 mA |
| Voltage - Supply Span (Min) | 3 V | 3 V | 3 V |
| Voltage - Supply Span (Max) | 32 V | 32 V | 32 V |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-CSOIC (0.250", 6.35mm Width) | 14-CSOIC (0.250", 6.35mm Width) | 14-CFlatpack |
| Supplier Device Package | 14-CFP | 14-CFP | 14-CFP |
