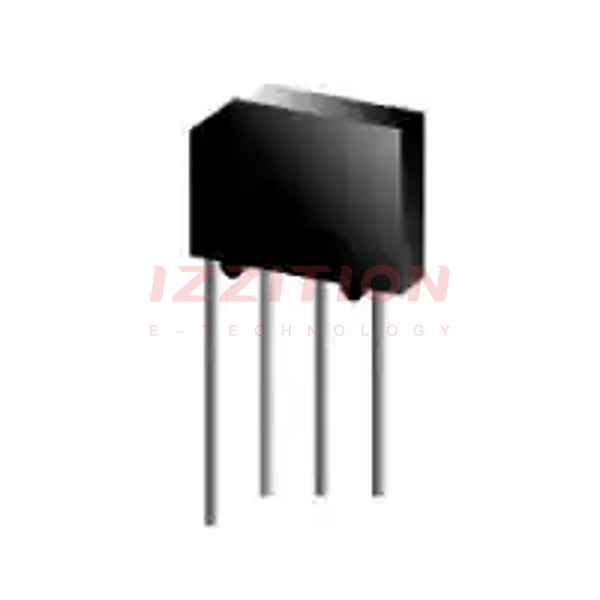

Fairchild Semiconductor-3N259 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes | Izzition

Similar Products

Part Number	3N259	3N249	3N250	3N251	3N252	3N253	3N254	3N255	3N256	3N257	3N258
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	onsemi	onsemi	onsemi	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	1 kV	400 V	600 V	800 V	1 kV	50 V	100 V	200 V	400 V	600 V	800 V
Current - Average Rectified (Io)	2 A	1.5 A	1.5 A	1.5 A	1.5 A	2 A	2 A	2 A	2 A	2 A	2 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 3.14 A	1 V @ 1 A	1 V @ 1 A	1 V @ 1 A	1 V @ 1 A	1.1 V @ 3.14 A	1.1 V @ 3.14 A	1.1 V @ 3.14 A	1.1 V @ 3.14 A	1.1 V @ 3.14 A	1.1 V @ 3.14 A
Current - Reverse Leakage @ Vr	5 µA @ 1 V	5 µA @ 400 V	5 µA @ 600 V	5 µA @ 800 V	5 µA @ 1000 V	5 µA @ 50 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 600 V	5 µA @ 800 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 165°C (TJ)	-55°C ~ 165°C (TJ)	-55°C ~ 165°C (TJ)	-55°C ~ 165°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM	4-SIP, KBPM
Supplier Device Package	KBPM	KBPM	KBPM	KBPM	KBPM	KBPM	KBPM	KBPM	KBPM	KBPM	KBPM
