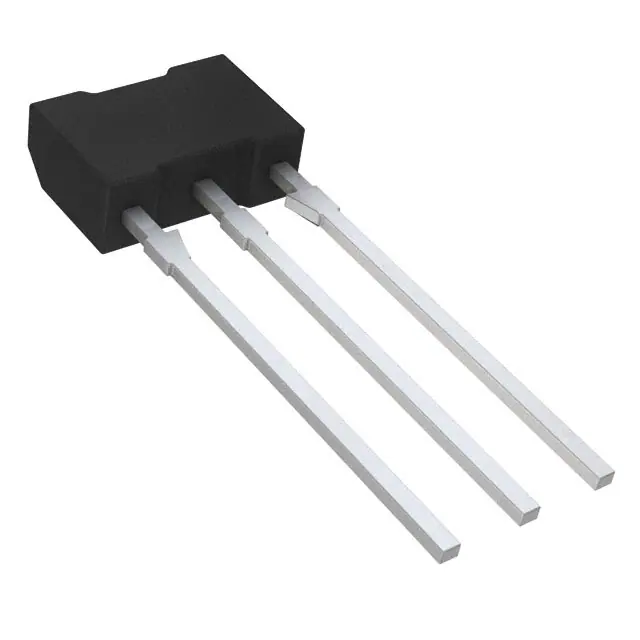

Fairchild Semiconductor-2SA1708T-AN-FS - Transistors - Bipolar (BJT) - Arrays Product Specifications and Latest Quotes

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1A
Voltage - Collector Emitter Breakdown (Max):	100V
Vce Saturation (Max) @ Ib, Ic:	600mV @ 40mA, 400mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 100mA, 10V
Power - Max:	1W
Frequency - Transition:	120MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	SC-71
Supplier Device Package:	3-NMP

Fairchild Semiconductor 2SA1708T-AN-FS
