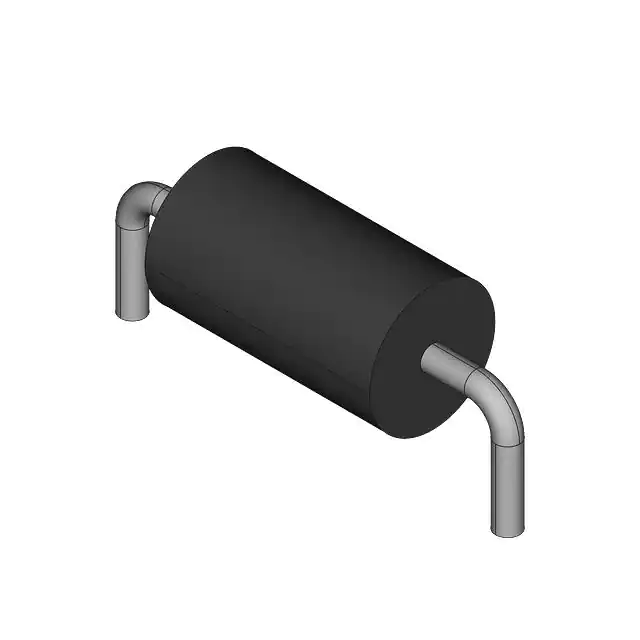

| Part Number | 1V5KE10CA | 1V5KE180CA | 1V5KE170CA | 1V5KE18CA | 1V5KE15CA | 1V5KE11CA | 1V5KE120CA | 1V5KE20CA | 1V5KE13CA | 1V5KE130CA | 1V5KE16CA | 1V5KE150CA | 1V5KE160CA | 1V5KE110CA | 1V5KE30CA | 1V5KE12CA | 1V5KE100A | 1V5KE100CA | 1V5KE10A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 8.55V | 154V | 145V | 15.3V | 12.8V | 9.4V | 102V | 17.1V | 11.1V | 111V | 13.6V | 128V | 136V | 94V | 25.6V | 10.2V | 85.5V | 85.5V | 8.55V |
| Voltage - Breakdown (Min) | 9.5V | 171V | 162V | 17.1V | 14.3V | 10.5V | 114V | 19V | 12.4V | 124V | 15.2V | 143V | 152V | 106V | 28.5V | 11.4V | 95V | 95V | 9.5V |
| Voltage - Clamping (Max) @ Ipp | 14.5V | 246V | 234V | 26.2V | 21.2V | 15.6V | 165V | 27.7V | 18.2V | 179V | 22.5V | 207V | 219V | 152V | 41.4V | 16.7V | 137V | 137V | 14.5V |
| Current - Peak Pulse (10/1000µs) | 103A | 6.1A | 6.4A | 59.5A | 71A | 96.2A | 9.1A | 54.2A | 82A | 8.4A | 67A | 7.2A | 6.8A | 9.9A | 36.2A | 90A | 11A | 11A | 103A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AD, Axial | DO-201AD, Axial | DO-201AE, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial | DO-201AD, Axial |
| Supplier Device Package | DO-201AD | DO-201AD | DO-201AE | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD |
