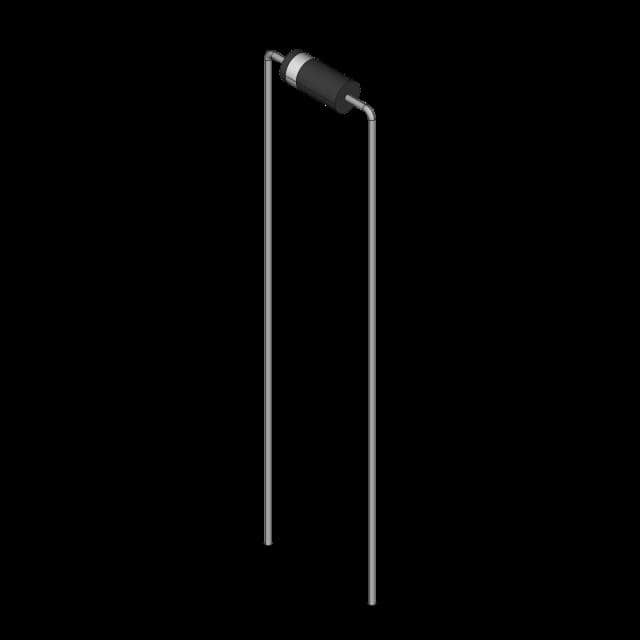

| Part Number | 1N916A | 1N916B | 1N914A | 1N916 |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Active | Active | Obsolete | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) | 200mA | 200mA | 200mA | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 20 mA | 1 V @ 20 mA | 1 V @ 20 mA | 1 V @ 10 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns | 4 ns | 4 ns | 4 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V | 5 µA @ 75 V | 5 µA @ 75 V | 5 µA @ 75 V |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz | 2pF @ 0V, 1MHz | 4pF @ 0V, 1MHz | 2pF @ 0V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 | DO-35 | DO-35 (DO-204AH) | DO-35 |
| Operating Temperature - Junction | -65°C ~ 175°C | -55°C ~ 175°C | 175°C (Max) | -65°C ~ 175°C |
