Fairchild Semiconductor-1N483B - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	1N483B	1N485B	1N486B	1N484B	1N482B
Manufacturer	Fairchild Semiconductor	onsemi	NTE Electronics, Inc	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	80 V	200 V	250 V	125 V	30 V
Current - Average Rectified (Io)	200mA	200mA	200mA	200mA	200mA
Voltage - Forward (Vf) (Max) @ If	1 V @ 100 mA	1 V @ 100 mA	1 V @ 100 mA	1 V @ 100 mA	1 V @ 100 mA
Speed	Small Signal =< 200mA (Io), Any Speed	Small Signal =< 200mA (Io), Any Speed	Small Signal =< 200mA (Io), Any Speed	Small Signal =< 200mA (Io), Any Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	-	-	-	-	-
Current - Reverse Leakage @ Vr	25 nA @ 60 V	25 nA @ 175 V	50 nA @ 225 V	25 nA @ 125 V	25 nA @ 30 V
Capacitance @ Vr, F	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35	DO-35	DO-35	DO-35	DO-35
Operating Temperature - Junction	175°C (Max)	175°C (Max)	175°C (Max)	-65°C ~ 200°C	-65°C ~ 200°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	80 V
Current - Average Rectified (Io):	200mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	25 nA @ 60 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	DO-204AH, DO-35, Axial
Supplier Device Package:	DO-35
Operating Temperature - Junction:	175°C (Max)

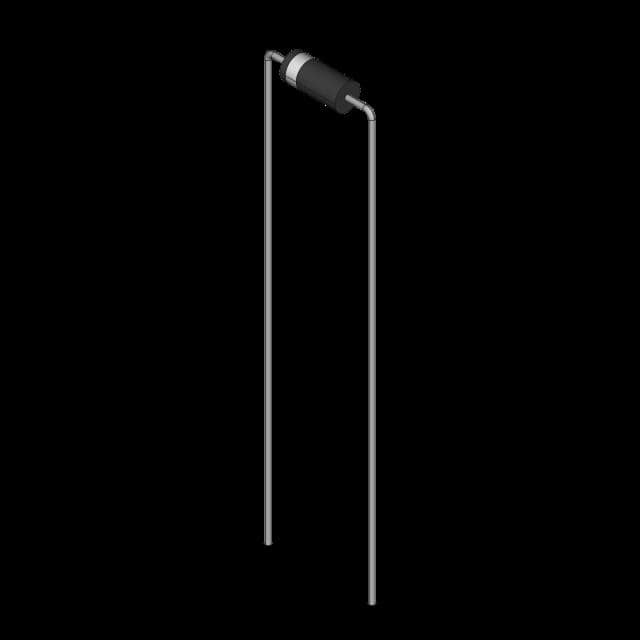

Fairchild Semiconductor 1N483B
