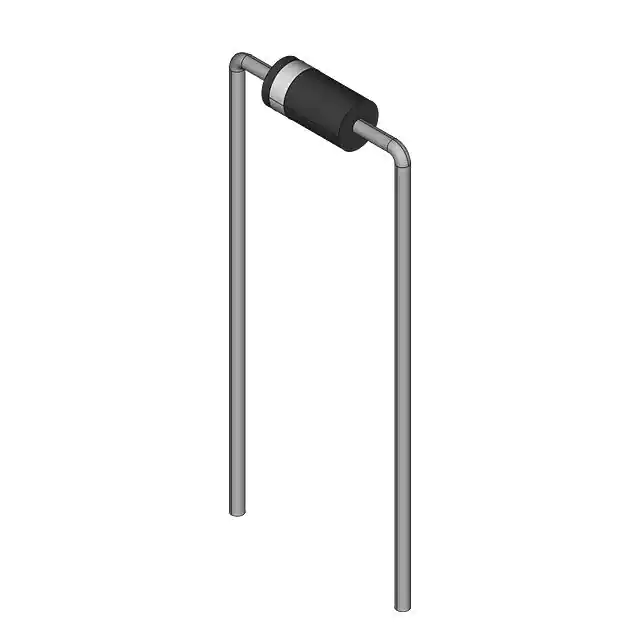

| Part Number | 1N4002GP | 1N4004GP | 1N4003GP | 1N4001GP | 1N4002G | 1N4002GH |
|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi | onsemi | Taiwan Semiconductor Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 400 V | 200 V | 50 V | 100 V | 100 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 1A | 1A | 1A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A | 1.1 V @ 1 A | 1.1 V @ 1 A | 1.1 V @ 1 A | 1.1 V @ 1 A | 1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V | 10 µA @ 400 V | 10 µA @ 200 V | 10 µA @ 50 V | 10 µA @ 100 V | 5 µA @ 100 V |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | - | 10pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) | DO-41 | DO-41 | DO-41 | Axial | DO-204AL (DO-41) |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -65°C ~ 175°C | -55°C ~ 150°C |
