Please send RFQ , we will respond immediately.

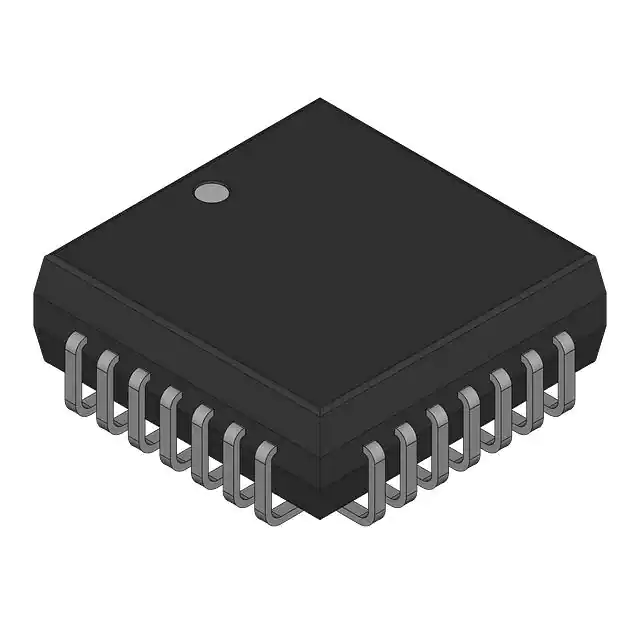

| Part Number | 100397QC | 100398QC | 100397QI | 100390QC | 100393QC | 100395QC | 100397PC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active |
| Translator Type | Mixed Signal | Mixed Signal | Mixed Signal | Mixed Signal | Mixed Signal | Mixed Signal | Mixed Signal |
| Channel Type | Bidirectional | Bidirectional | Bidirectional | Unidirectional | Unidirectional | Unidirectional | Bidirectional |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Channels per Circuit | 4 | 4 | 4 | 6 | 9 | 9 | 4 |
| Voltage - VCCA | - | - | - | - | - | - | - |
| Voltage - VCCB | - | - | - | - | - | - | - |
| Input Signal | ECL | ECL | ECL | ECL | ECL | ECL | ECL |
| Output Signal | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Non-Inverted | Non-Inverted | Tri-State, Non-Inverted |
| Data Rate | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 85°C (TC) | 0°C ~ 85°C (TC) | -40°C ~ 85°C (TC) | 0°C ~ 85°C (TC) | 0°C ~ 85°C (TC) | 0°C ~ 85°C (TA) | 0°C ~ 85°C (TC) |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 24-DIP (0.400", 10.16mm) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.43x11.43) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 24-PDIP |
