| Part Number | 100329QC | 100324QC | 100325QC | 100328QC | 100329DC |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Obsolete | Active | Active |
| Translator Type | Mixed Signal | Mixed Signal | Mixed Signal | Mixed Signal | Mixed Signal |
| Channel Type | Bidirectional | Unidirectional | Unidirectional | Bidirectional | Bidirectional |
| Number of Circuits | 1 | 1 | 1 | 8 | 1 |
| Channels per Circuit | 8 | 6 | 6 | 1 | 8 |
| Voltage - VCCA | - | - | - | - | - |
| Voltage - VCCB | - | - | - | - | - |
| Input Signal | ECL | TTL | ECL | ECL, TTL | ECL |
| Output Signal | TTL | ECL | TTL | ECL, TTL | TTL |
| Output Type | Tri-State, Non-Inverted | Differential | Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Data Rate | - | - | - | - | - |
| Operating Temperature | 0°C ~ 85°C (TC) | 0°C ~ 85°C (TA) | 0°C ~ 85°C (TA) | 0°C ~ 85°C (TC) | 0°C ~ 85°C (TC) |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |

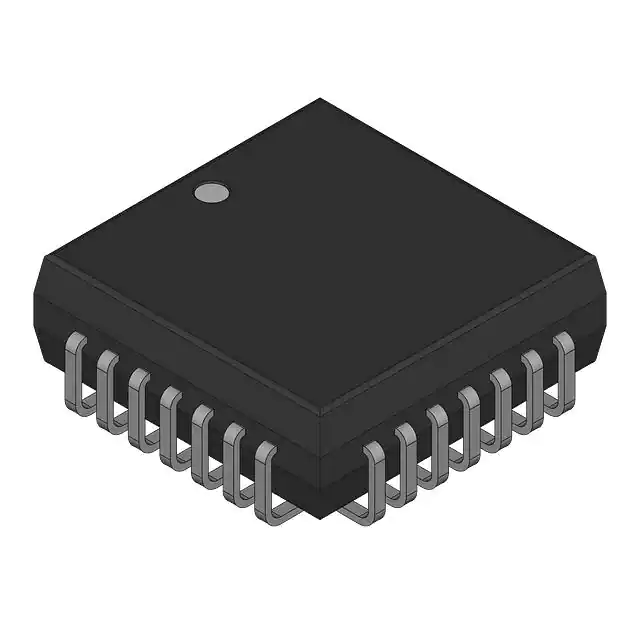

| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 24-CDIP (0.400", 10.16mm) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 24-CERDIP |
