| Part Number | 100301QC | 100302QC | 100307QC | 100304QC | 100301DC |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Obsolete | Active | Active |
| Logic Type | NOR/OR Gate | NOR/OR Gate | NOR/OR Gate | AND/NAND Gate | NOR/OR Gate |
| Number of Circuits | 3 | 5 | 5 | 5 | 3 |
| Number of Inputs | 15 Input (5, 5, 5) | 2 | 2 | 10 Input (2, 2, 2, 2, 2) | 15 Input (5, 5, 5) |
| Schmitt Trigger Input | No | No | No | No | No |
| Output Type | Differential | Differential | Differential | Differential | Differential |
| Current - Output High, Low | - | - | - | - | - |
| Voltage - Supply | -4.2V ~ -5.7V | 4.2V ~ 5.7V | 4.2V ~ 5.7V | -4.2V ~ -5.7V | -4.2V ~ -5.7V |
| Operating Temperature | 0°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 85°C | 0°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |

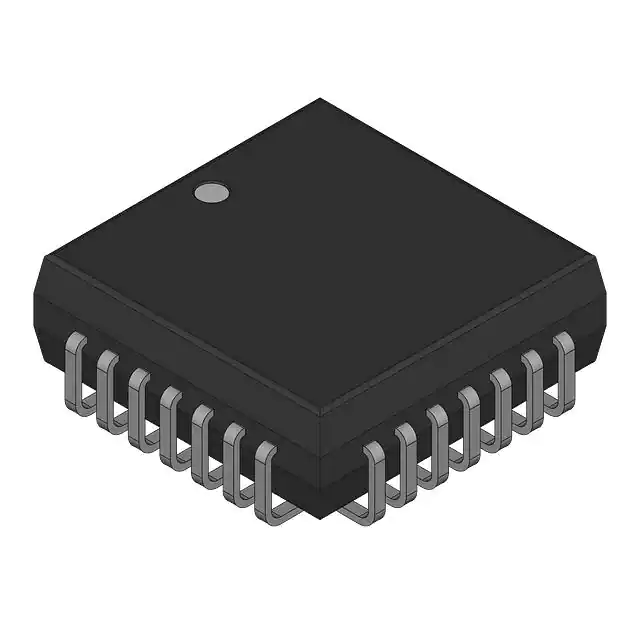

| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 24-CDIP (0.400", 10.16mm) |
| Supplier Device Package | 28-PLCC (11.43x11.43) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 24-CERDIP |
