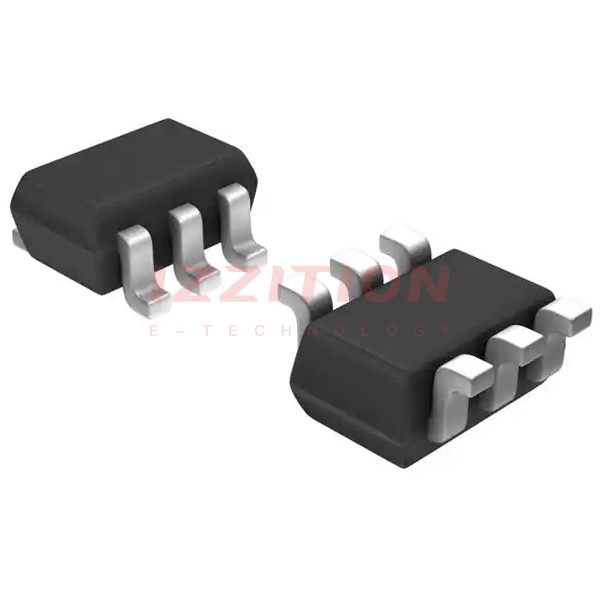

Panasonic Electronic Components XP0621300L

Manufacturer No:
XP0621300L
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
XP0621300L Datasheet
ECAD Model:
-
Description:
TRANS PREBIAS DUAL NPN SMINI6
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max):100mA
Voltage - Collector Emitter Breakdown (Max):50V
Resistor - Base (R1):47kOhms
Resistor - Emitter Base (R2):47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:250mV @ 300µA, 10mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:150MHz
Power - Max:150mW
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Supplier Device Package:SMINI6-G1
0 Remaining View Similar

In Stock

-
209

Please send RFQ , we will respond immediately.

Similar Products

Part Number XP0621300L XP0621500L   XP0621400L   XP0621600L   XN0621300L   XP0121300L   XP0421300L   XP0611300L   XP0621000L   XP0621100L   XP0621200L
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Transistor Type 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 PNP - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) 100mA 100mA 100mA 100mA 100mA 100mA 100mA 100mA 100mA 100mA 100mA
Voltage - Collector Emitter Breakdown (Max) 50V 50V 50V 50V 50V 50V 50V 50V 50V 50V 50V
Resistor - Base (R1) 47kOhms 10kOhms 10kOhms 4.7kOhms 47kOhms 47kOhms 47kOhms 47kOhms 47kOhms 10kOhms 22kOhms
Resistor - Emitter Base (R2) 47kOhms - 47kOhms - 47kOhms 47kOhms 47kOhms 47kOhms - 10kOhms 22kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce 80 @ 5mA, 10V 160 @ 5mA, 10V 80 @ 5mA, 10V 160 @ 5mA, 10V 80 @ 5mA, 10V 80 @ 5mA, 10V 80 @ 5mA, 10V 80 @ 5mA, 10V 160 @ 5mA, 10V 35 @ 5mA, 10V 60 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) 500nA 500nA 500nA 500nA 500nA 500nA 500nA 500nA 500nA 500nA 500nA
Frequency - Transition 150MHz 150MHz 150MHz 150MHz 150MHz 150MHz 150MHz 80MHz 150MHz 150MHz 150MHz
Power - Max 150mW 150mW 150mW 150mW 300mW 150mW 150mW 150mW 150mW 150mW 150mW
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 SOT-23-6 5-TSSOP, SC-70-5, SOT-353 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363
Supplier Device Package SMINI6-G1 SMINI6-G1 SMINI6-G1 SMINI6-G1 MINI6-G1 SMini5-G1 SMINI6-G1 SMINI6-G1 SMINI6-G1 SMINI6-G1 SMINI6-G1
