XP0421500L
  • Share:

Panasonic Electronic Components XP0421500L

Manufacturer No:
XP0421500L
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
XP0421500L Datasheet
ECAD Model:
-
Description:

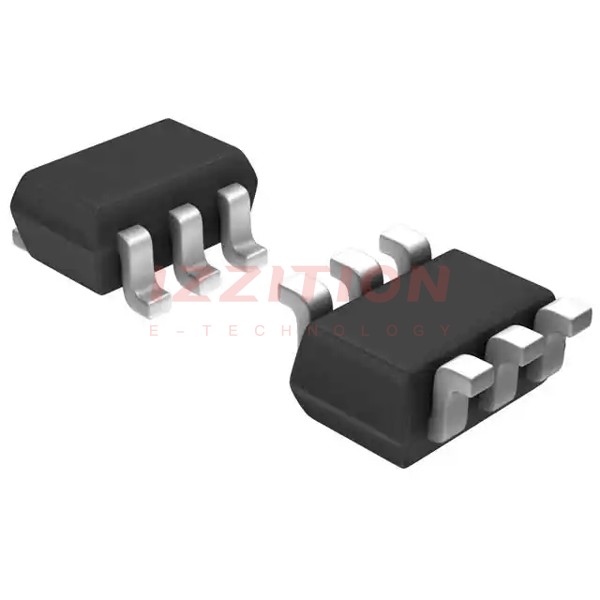

TRANS PREBIAS DUAL NPN SMINI6
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max):100mA
Voltage - Collector Emitter Breakdown (Max):50V
Resistor - Base (R1):10kOhms
Resistor - Emitter Base (R2):-
DC Current Gain (hFE) (Min) @ Ic, Vce:160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:250mV @ 300µA, 10mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:150MHz
Power - Max:150mW
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Supplier Device Package:SMINI6-G1
0 Remaining View Similar

In Stock

$0.40
1,299

Please send RFQ , we will respond immediately.

Similar Products

Part Number XP0421500L XP0621500L   XP0431500L   XP0421600L   XP0421M00L   XN0421500L   XP0121500L   XP0411500L   XP0421000L   XP0421100L   XP0421200L   XP0421300L   XP0421400L
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Transistor Type 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 1 NPN, 1 PNP - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 PNP - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual) 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) 100mA 100mA 100mA 100mA 100mA 100mA 100mA 100mA 100mA 100mA 100mA 100mA 100mA
Voltage - Collector Emitter Breakdown (Max) 50V 50V 50V 50V 50V 50V 50V 50V 50V 50V 50V 50V 50V
Resistor - Base (R1) 10kOhms 10kOhms 10kOhms 4.7kOhms 2.2kOhms 10kOhms 10kOhms 10kOhms 47kOhms 10kOhms 22kOhms 47kOhms 10kOhms
Resistor - Emitter Base (R2) - - - - 47kOhms - - - - 10kOhms 22kOhms 47kOhms 47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce 160 @ 5mA, 10V 160 @ 5mA, 10V 160 @ 5mA, 10V 160 @ 5mA, 10V 80 @ 5mA, 10V 160 @ 5mA, 10V 160 @ 5mA, 10V 160 @ 5mA, 10V 160 @ 5mA, 10V 35 @ 5mA, 10V 60 @ 5mA, 10V 80 @ 5mA, 10V 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) 500nA 500nA 500nA 500nA 500nA 500nA 500nA 500nA 500nA 500nA 500nA 500nA 500nA
Frequency - Transition 150MHz 150MHz 150MHz, 80MHz 150MHz 150MHz 150MHz 150MHz 80MHz 150MHz 150MHz 150MHz 150MHz 150MHz
Power - Max 150mW 150mW 150mW 150mW 150mW 300mW 150mW 150mW 150mW 150mW 150mW 150mW 150mW
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 SOT-23-6 5-TSSOP, SC-70-5, SOT-353 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363 6-TSSOP, SC-88, SOT-363
Supplier Device Package SMINI6-G1 SMINI6-G1 SMINI6-G1 SMINI6-G1 SMINI6-G1 MINI6-G1 SMini5-G1 SMINI6-G1 SMINI6-G1 SMINI6-G1 SMINI6-G1 SMINI6-G1 SMINI6-G1
