Please send RFQ , we will respond immediately.
| Part Number | XP0411200L | XP0411500L | XP0421200L | XP0411300L | XP0411400L | XP0411600L | XP0431200L | XN0411200L | XP0111200L | XP0411100L |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Resistor - Base (R1) | 22kOhms | 10kOhms | 22kOhms | 47kOhms | 10kOhms | 4.7kOhms | 22kOhms | 22kOhms | 2.2kOhms | 10kOhms |
| Resistor - Emitter Base (R2) | 22kOhms | - | 22kOhms | 47kOhms | 47kOhms | - | 22kOhms | 22kOhms | 2.2kOhms | 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 10V | 160 @ 5mA, 10V | 60 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 160 @ 5mA, 10V | 60 @ 5mA, 10V | 60 @ 5mA, 10V | 60 @ 5mA, 10V | 35 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA |
| Frequency - Transition | 80MHz | 80MHz | 150MHz | 80MHz | 80MHz | 80MHz | 150MHz, 80MHz | 80MHz | 80MHz | 80MHz |
| Power - Max | 150mW | 150mW | 150mW | 150mW | 150mW | 150mW | 150mW | 300mW | 150mW | 150mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

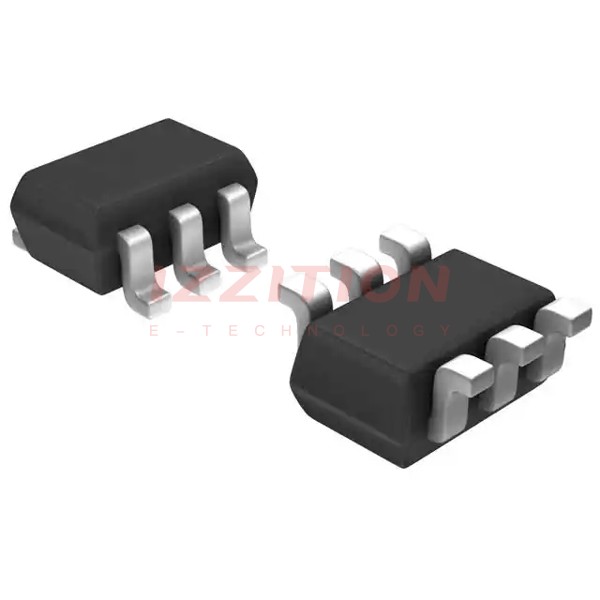

| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | SOT-23-6 | 5-TSSOP, SC-70-5, SOT-353 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SMINI6-G1 | SMINI6-G1 | SMINI6-G1 | SMINI6-G1 | SMINI6-G1 | SMINI6-G1 | SMINI6-G1 | MINI6-G1 | SMini5-G1 | SMINI6-G1 |
