Home
All Products
Discrete Semiconductor Products
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
UP0338300L

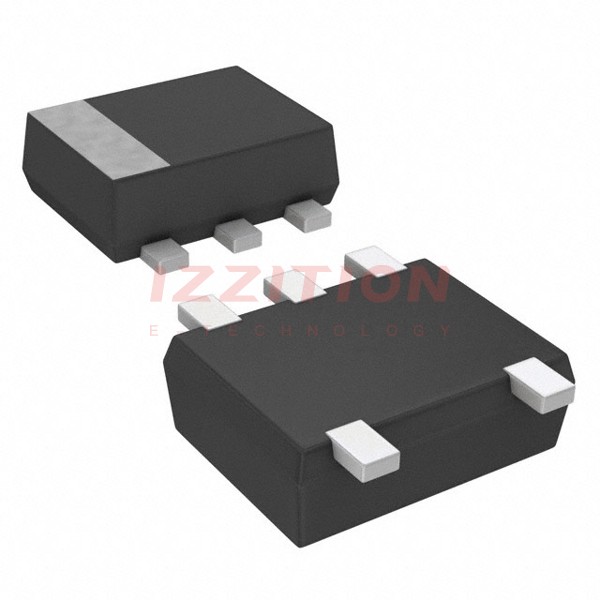

UP0338300L Image
×
Favorite
Compare
Add to RFQ
Share:
Panasonic Electronic Components UP0338300L
Manufacturer No:
UP0338300L
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
UP0338300L Datasheet
ECAD Model:
-
Description:
TRANS PREBIAS NPN/PNP SSMINI5
Delivery:
Payment:
Product Attributes
Transistor Type:
1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):
100mA
Voltage - Collector Emitter Breakdown (Max):
50V
Resistor - Base (R1):
47kOhms, 4.7kOhms
Resistor - Emitter Base (R2):
47kOhms, 10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:
80 @ 5mA, 10V / 30 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:
250mV @ 300µA, 10mA
Current - Collector Cutoff (Max):
500nA
Frequency - Transition:
150MHz, 80MHz
Power - Max:
125mW
Mounting Type:
Surface Mount
Package / Case:
SOT-665
Supplier Device Package:
SSMini5-F2
0
Remaining
View Similar
In Stock
UnitPrice:
$0.26
Quantity:
3,098
