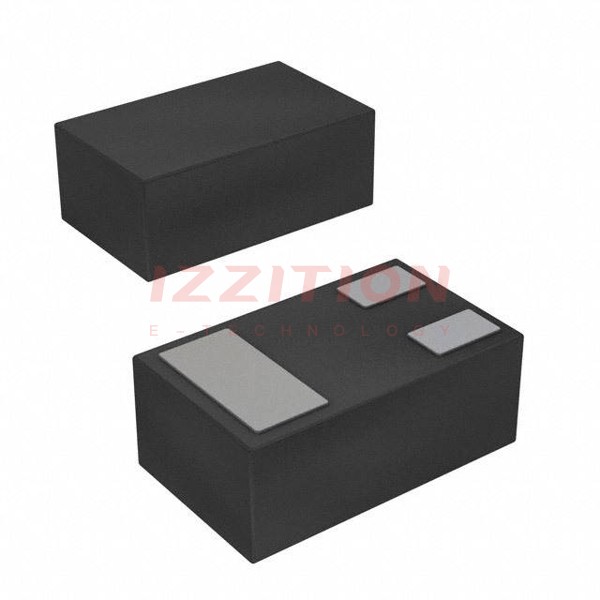

Panasonic Electronic Components-UNRF2A300A - Transistors - Bipolar (BJT) - Single, Pre-Biased Product Specifications and Latest Quotes

Part Number	UNRF2A300A	UNRF2AN00A	UNRF2A700A	UNRF1A300A	UNRF2A100A
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Active	Obsolete	Obsolete	Obsolete	Active
Transistor Type	NPN - Pre-Biased	NPN - Pre-Biased	NPN - Pre-Biased	PNP - Pre-Biased	NPN - Pre-Biased
Current - Collector (Ic) (Max)	80 mA	80 mA	80 mA	80 mA	80 mA
Voltage - Collector Emitter Breakdown (Max)	50 V	50 V	50 V	50 V	50 V
Resistor - Base (R1)	47 kOhms	4.7 kOhms	22 kOhms	47 kOhms	10 kOhms
Resistor - Emitter Base (R2)	47 kOhms	47 kOhms	-	47 kOhms	10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 5mA, 10V	80 @ 5mA, 10V	160 @ 5mA, 10V	80 @ 5mA, 10V	35 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic	250mV @ 300µA, 10mA	250mV @ 300µA, 10mA	250mV @ 300µA, 10mA	250mV @ 300µA, 10mA	250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)	500nA	500nA	500nA	500nA	500nA
Frequency - Transition	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz
Power - Max	100 mW	100 mW	100 mW	100 mW	100 mW
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SC-101, SOT-883	SC-101, SOT-883	SC-101, SOT-883	SC-101, SOT-883	SC-101, SOT-883
Supplier Device Package	ML3-N2	ML3-N2	ML3-N2	ML3-N2	ML3-N2

Panasonic Electronic Components UNRF2A300A

Transistor Type:	NPN - Pre-Biased
Current - Collector (Ic) (Max):	80 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Resistor - Base (R1):	47 kOhms
Resistor - Emitter Base (R2):	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:	80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:	250mV @ 300µA, 10mA
Current - Collector Cutoff (Max):	500nA
Frequency - Transition:	150 MHz
Power - Max:	100 mW
Mounting Type:	Surface Mount
Package / Case:	SC-101, SOT-883
Supplier Device Package:	ML3-N2
