| Part Number | UNRF1A300A | UNRF2A300A | UNRF1A400A |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Obsolete |
| Transistor Type | PNP - Pre-Biased | NPN - Pre-Biased | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 80 mA | 80 mA | 80 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | 47 kOhms | 47 kOhms | 10 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms | 47 kOhms | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA | 500nA |
| Frequency - Transition | 150 MHz | 150 MHz | 80 MHz |
| Power - Max | 100 mW | 100 mW | 100 mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

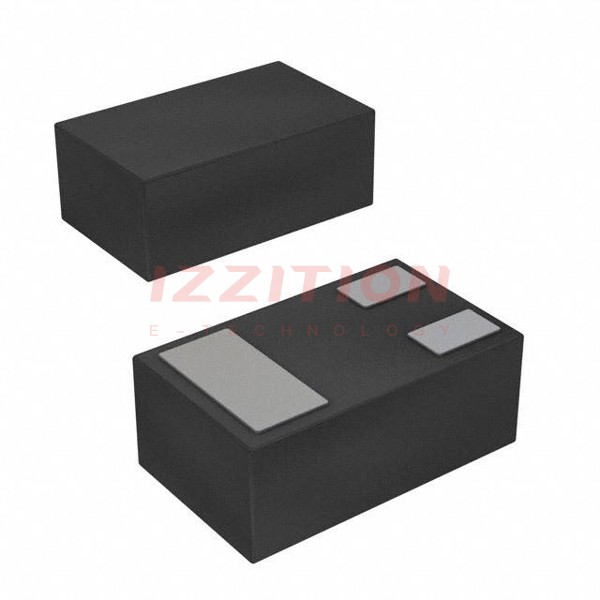

| Package / Case | SC-101, SOT-883 | SC-101, SOT-883 | SC-101, SOT-883 |
| Supplier Device Package | ML3-N2 | ML3-N2 | ML3-N2 |
