Please send RFQ , we will respond immediately.

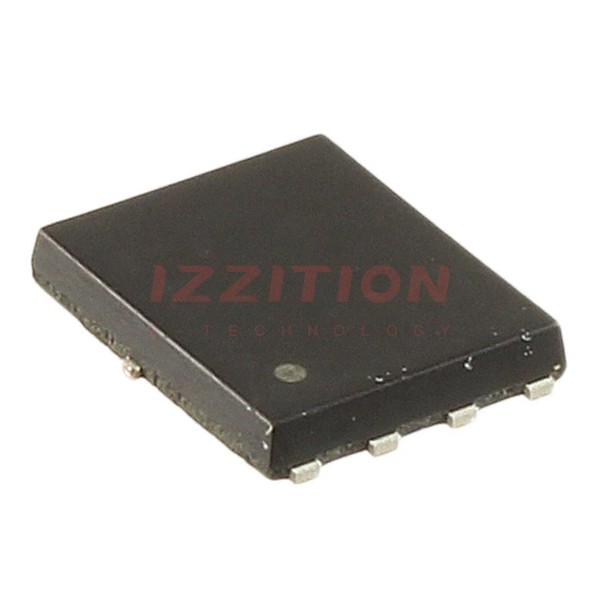

| Part Number | SK8603170L | SK8603180L | SK8603190L | SK8403170L | SK8603140L | SK8603150L | SK8603160L |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 59A (Tc) | 15A (Ta), 39A (Tc) | 12A (Ta), 19A (Tc) | 16A (Ta), 59A (Tc) | 25A (Ta), 103A (Tc) | 26A (Ta), 89A (Tc) | 22A (Ta), 70A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.1mOhm @ 14A, 10V | 7.1mOhm @ 10A, 10V | 10mOhm @ 8A, 10V | 4.1mOhm @ 12A, 10V | 2.2mOhm @ 23A, 10V | 2.5mOhm @ 20A, 10V | 3.3mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 2.56mA | 3V @ 1.45mA | 3V @ 1.01mA | 3V @ 2.56mA | 3V @ 5.85mA | 3V @ 4.38mA | 3V @ 3.35mA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 4.5 V | 9.2 nC @ 4.5 V | 6.3 nC @ 4.5 V | 17 nC @ 4.5 V | 37 nC @ 4.5 V | 28 nC @ 4.5 V | 22 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2940 pF @ 10 V | 1680 pF @ 10 V | 1092 pF @ 10 V | 2940 pF @ 10 V | 6860 pF @ 10 V | 5180 pF @ 10 V | 3920 pF @ 10 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 2.8W (Ta), 24W (Tc) | 2.4W (Ta), 19W (Tc) | 2.7W (Ta), 19W (Tc) | 2W (Ta), 24.6W (Tc) | 2.5W (Ta), 40W (Tc) | 2.9W (Ta), 34W (Tc) | 2.8W (Ta), 28W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | HSO8-F4-B | HSO8-F4-B | HSO8-F4-B | HSSO8-F1-B | HSO8-F4-B | HSO8-F4-B | HSO8-F4-B |
| Package / Case | 8-PowerSMD, Flat Leads | 8-PowerSMD, Flat Leads | 8-PowerSMD, Flat Leads | 8-PowerSMD, Flat Leads | 8-PowerSMD, Flat Leads | 8-PowerSMD, Flat Leads | 8-PowerSMD, Flat Leads |
