Panasonic Electronic Components-SK830321KL - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	7A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	24mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id:	3V @ 519µA
Gate Charge (Qg) (Max) @ Vgs:	3.9 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	658 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	2W (Ta), 13W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	HSSO8-F3-B
Package / Case:	8-PowerSMD, Flat Leads

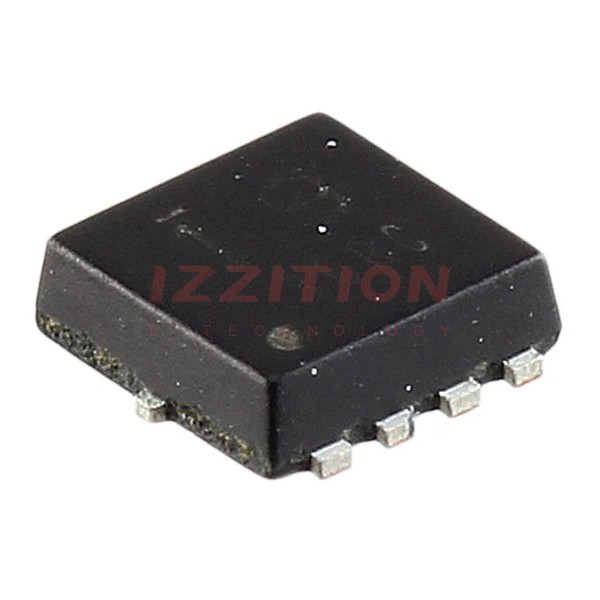

Panasonic Electronic Components SK830321KL
