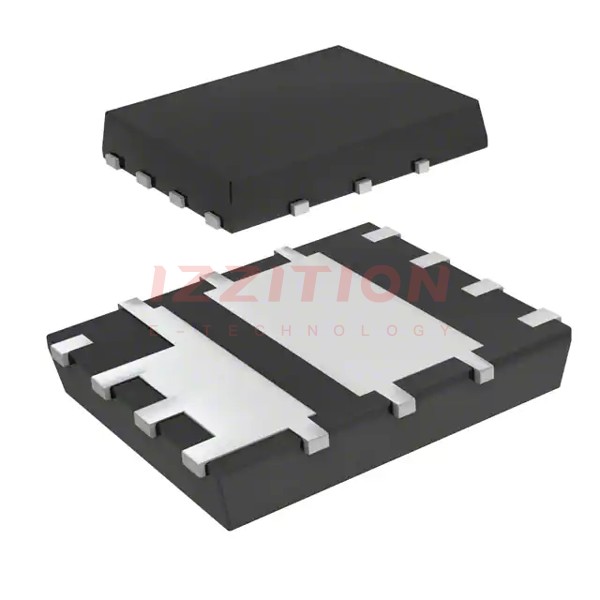

| Part Number | SC8673010L | SC8673040L |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 16A, 40A | 16A, 46A |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 8A, 10V | 10mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 4.38mA | 3V @ 5.85mA |
| Gate Charge (Qg) (Max) @ Vgs | 6.3nC @ 4.5V | 6.3nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 5180pF @ 10V | 1092pF @ 10V |
| Power - Max | 1.7W, 2.5W | 1.7W, 2.5W |
| Operating Temperature | -40°C ~ 85°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-PowerSMD, Flat Leads | 8-PowerSMD, Flat Leads |
| Supplier Device Package | HSO8-F3-B | HSO8-F3-B |
