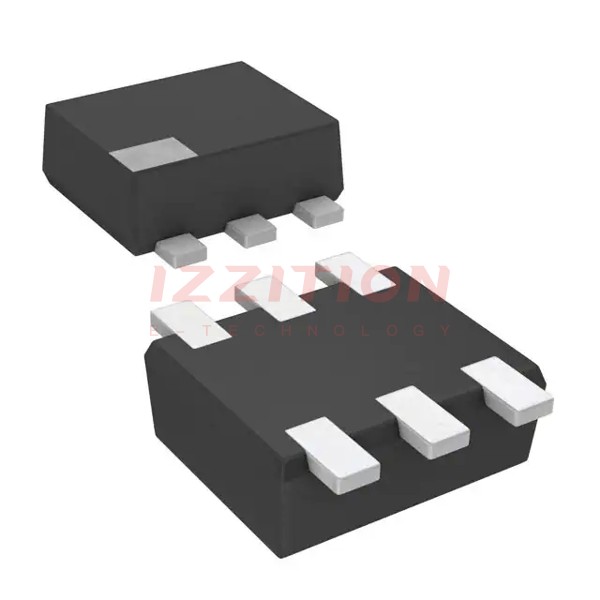

| Part Number | NP0G3A000A | NP0G3A300A |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 80mA | 80mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V |
| Resistor - Base (R1) | 47kOhms | 47kOhms |
| Resistor - Emitter Base (R2) | - | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 5mA, 10V | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA |
| Frequency - Transition | 150MHz, 80MHz | 150MHz, 80MHz |
| Power - Max | 125mW | 125mW |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-963 | SOT-963 |
| Supplier Device Package | SSSMini6-F1 | SSSMini6-F1 |
