Home
All Products
Discrete Semiconductor Products
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
NP062AN00A

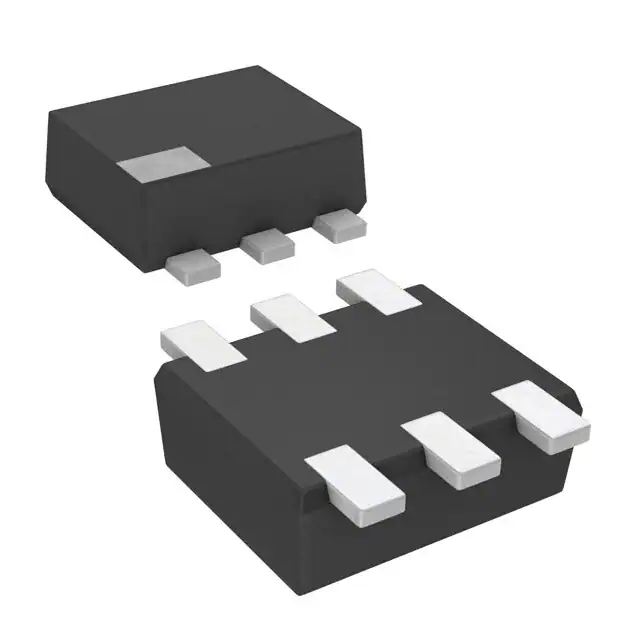

NP062AN00A Image
×
Favorite
Compare
Add to RFQ
Share:
Panasonic Electronic Components NP062AN00A
Manufacturer No:
NP062AN00A
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
NP062AN00A Datasheet
ECAD Model:
-
Description:
TRANS 2NPN PREBIAS SSSMINI6
Delivery:
Payment:
Product Attributes
Transistor Type:
2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max):
80mA
Voltage - Collector Emitter Breakdown (Max):
50V
Resistor - Base (R1):
4.7kOhms
Resistor - Emitter Base (R2):
47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:
80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:
250mV @ 300µA, 10mA
Current - Collector Cutoff (Max):
500nA
Frequency - Transition:
150MHz
Power - Max:
125mW
Mounting Type:
Surface Mount
Package / Case:
SOT-963
Supplier Device Package:
SSSMini6-F1
0
Remaining
View Similar
In Stock
UnitPrice:
$0.43
Quantity:
1,573
Please send RFQ , we will respond immediately.
