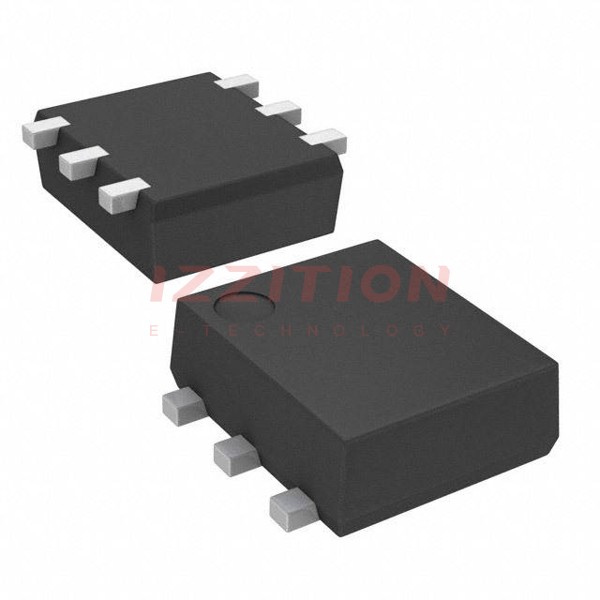

| Part Number | MTM867270LBF | MTM861270LBF | MTM862270LBF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2.2A (Ta) | 2A (Ta) | 2.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V | 1.8V, 4V | 1.8V, 4V |
| Rds On (Max) @ Id, Vgs | 105mOhm @ 1A, 4V | 120mOhm @ 1A, 4V | 105mOhm @ 1A, 4V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA | 1.1V @ 1mA | 1.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - | - | - |
| Vgs (Max) | ±10V | ±10V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 280 pF @ 10 V | 300 pF @ 10 V | 280 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 540mW (Ta) | 540mW (Ta) | 540mW (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | WSSMini6-F1 | WSSMini6-F1 | WSSMini6-F1 |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
