Please send RFQ , we will respond immediately.
| Part Number | MTM763250LBF | MTM763200LBF |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| FET Type | N and P-Channel | N and P-Channel |
| FET Feature | Logic Level Gate | Standard |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A, 1A | 1.9A, 1.2A |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 1A, 4V | 105mOhm @ 1A, 4V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA | 1.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 280pF @ 10V | 280pF @ 10V |
| Power - Max | 700mW | 700mW |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

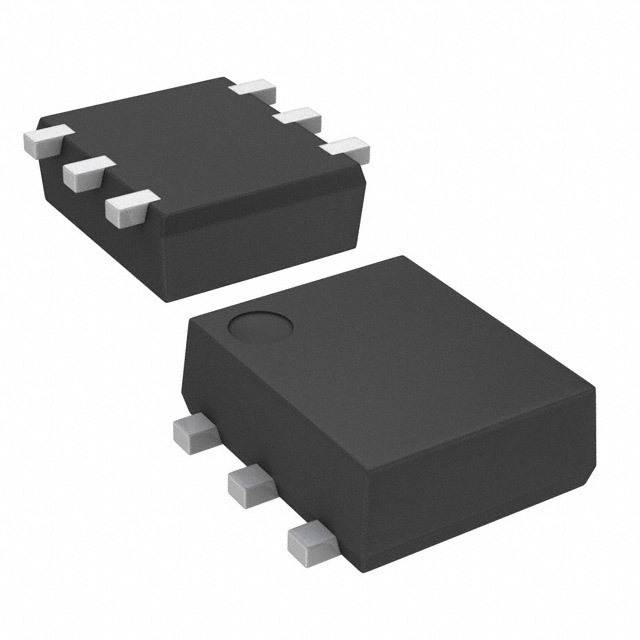

| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
| Supplier Device Package | WSMini6-F1-B | WSMini6-F1-B |
