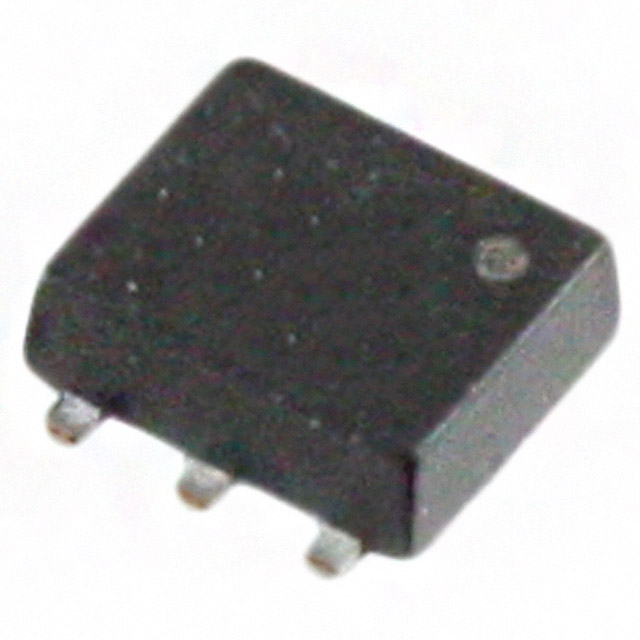

| Part Number | MTM761110LBF | MTM761100LBF |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) | 4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4V |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 1A, 4.5V | 42mOhm @ 1A, 4V |
| Vgs(th) (Max) @ Id | 1V @ 1mA | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Vgs (Max) | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF @ 10 V | 1200 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 700mW (Ta) | 700mW (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | WSMini6-F1-B | WSMini6-F1-B |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
