| Part Number | MTM684100LBF | MTM684110LBF |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 12V | 12V |
| Current - Continuous Drain (Id) @ 25°C | 4.8A | 4.8A |
| Rds On (Max) @ Id, Vgs | 42mOhm @ 1A, 4V | 32mOhm @ 1A, 5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1200pF @ 10V | 1400pF @ 10V |
| Power - Max | 1W | 1W |
| Operating Temperature | -40°C ~ 85°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

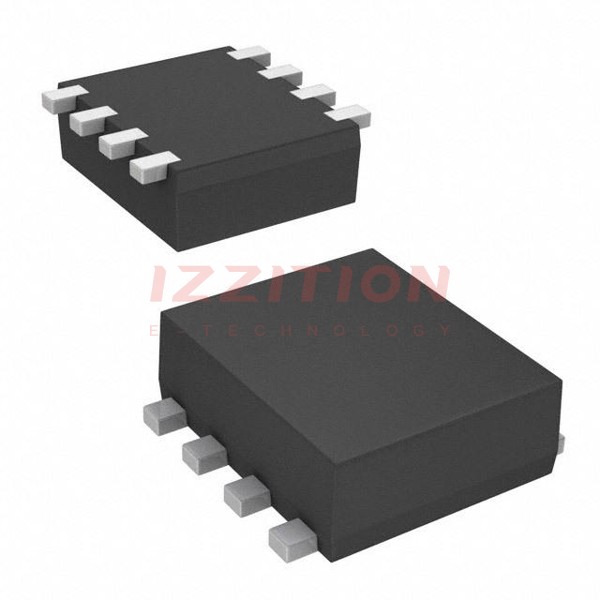

| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
| Supplier Device Package | WMini8-F1 | WMini8-F1 |
