Panasonic Electronic Components-MTM231232LBF - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	55mOhm @ 1A, 4V
Vgs(th) (Max) @ Id:	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	1000 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	500mW (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SMini3-G1-B

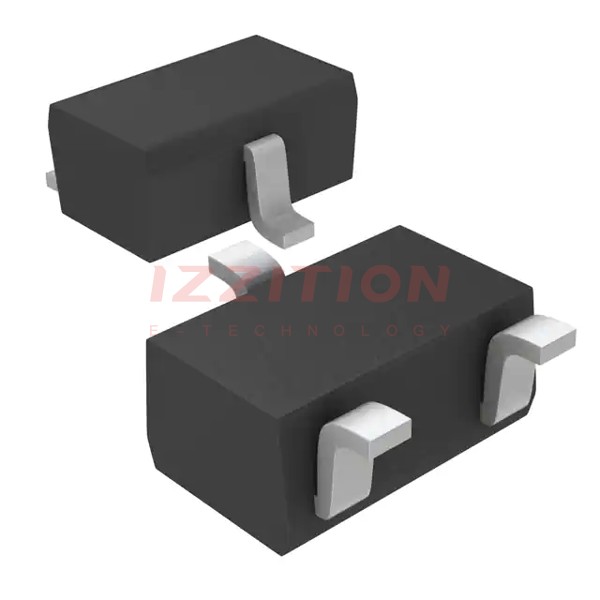

Package / Case:	SC-70, SOT-323

Panasonic Electronic Components MTM231232LBF
