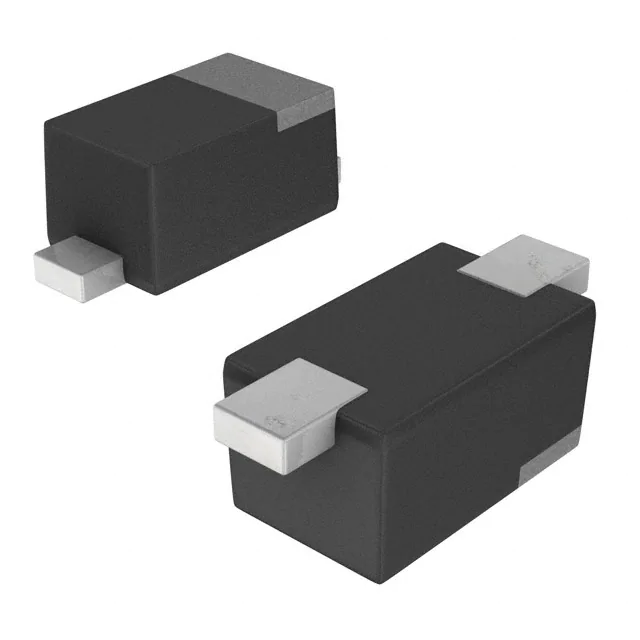

| Part Number | MAZD12000L | MAZD16000L | MAZD120G0L | MAZD10000L |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 12 V | 16 V | 12 V | 10 V |
| Tolerance | ±5% | ±6% | ±5% | ±6% |
| Power - Max | 120 mW | 120 mW | 120 mW | 120 mW |
| Impedance (Max) (Zzt) | 30 Ohms | 50 Ohms | 30 Ohms | 30 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 9 V | 50 nA @ 12 V | 50 nA @ 9 V | 50 nA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA |
| Operating Temperature | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | SSSMini2-F2 | SSSMini2-F2 | SSSMini2-F3 | SSSMini2-F2 |
