Please send RFQ , we will respond immediately.

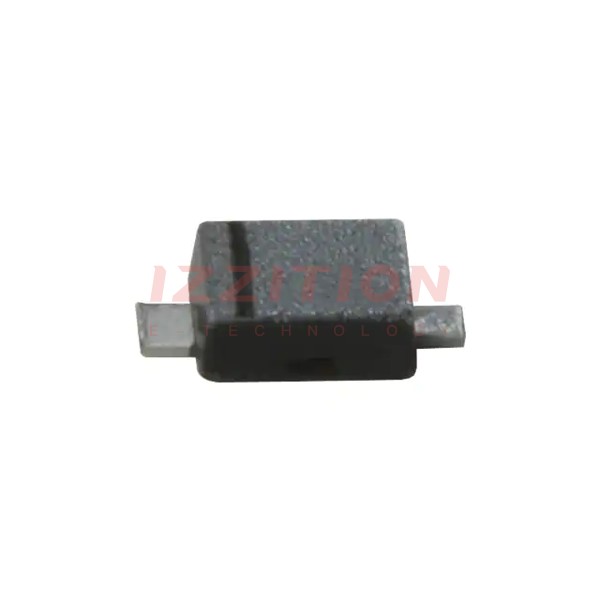

| Part Number | MAZ802400L | MAZS02400L | MAZ8024G0L | MAZ302400L |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 2.4 V | 2.4 V | 2.4 V | 2.4 V |
| Tolerance | ±7% | ±7% | ±7% | ±7% |
| Power - Max | 150 mW | 150 mW | 150 mW | 200 mW |
| Impedance (Max) (Zzt) | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms |
| Current - Reverse Leakage @ Vr | 120 µA @ 1 V | 120 µA @ 1 V | 120 µA @ 1 V | 120 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-90, SOD-323F | SC-79, SOD-523 | SC-90, SOD-323F | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SMini2-F1 | SSMini2-F1 | SMini2-F3 | Mini3-G1 |
