Please send RFQ , we will respond immediately.

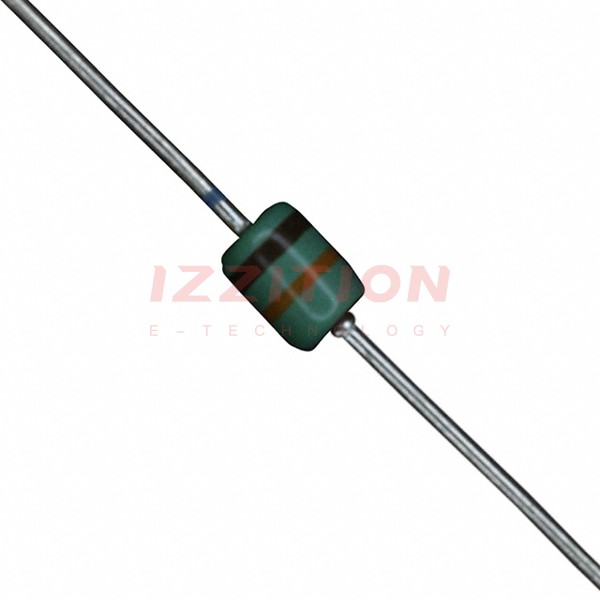

| Part Number | MAZ41300MF | MAZ41600MF | MAZ43300MF | MAZ41500MF | MAZ41800MF | MAZ40300MF | MAZ41100MF | MAZ41200MF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 13 V | 16 V | 33 V | 15 V | 18 V | 3 V | 11 V | 12 V |
| Tolerance | ±6% | ±6% | ±6% | ±6% | ±6% | ±7% | ±5% | ±5% |
| Power - Max | 370 mW | 370 mW | 370 mW | 370 mW | 370 mW | 370 mW | 370 mW | 370 mW |
| Impedance (Max) (Zzt) | 30 Ohms | 40 Ohms | 80 Ohms | 30 Ohms | 45 Ohms | 100 Ohms | 20 Ohms | 25 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 9 V | 50 nA @ 11 V | 50 nA @ 23 V | 50 nA @ 10 V | 50 nA @ 13 V | 50 µA @ 1 V | 100 nA @ 7 V | 100 nA @ 8 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial |
| Supplier Device Package | DO34-A2 | DO34-A2 | DO34-A2 | DO34-A2 | DO34-A2 | DO34-A2 | DO34-A2 | DO34-A2 |
