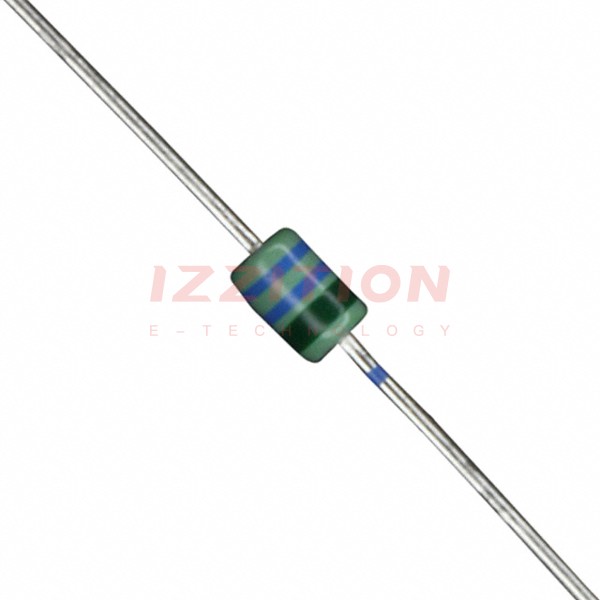

| Part Number | MAZ40560MF | MAZ40360MF | MAZ40510MF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 5.6 V | 3.6 V | 5.1 V |
| Tolerance | ±6% | ±6% | ±6% |
| Power - Max | 370 mW | 370 mW | 370 mW |
| Impedance (Max) (Zzt) | 40 Ohms | 100 Ohms | 60 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 2 V | 10 µA @ 1 V | 2 µA @ 2 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial |
| Supplier Device Package | DO34-A2 | DO34-A2 | DO34-A2 |
