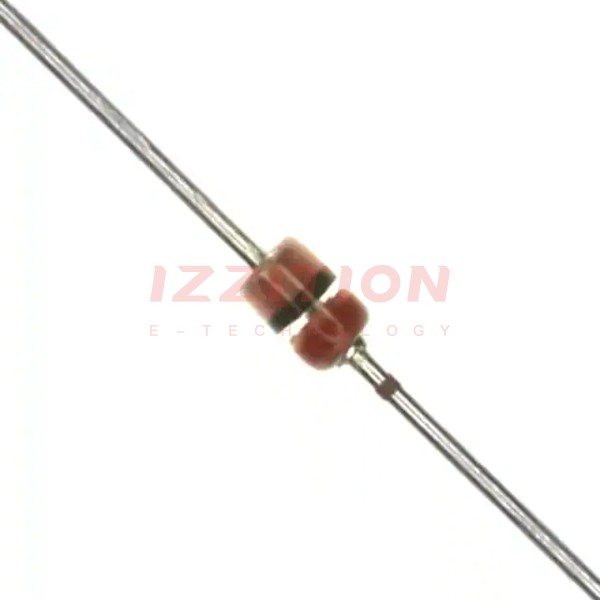

| Part Number | MAZ23600AG | MAZ21600AG | MAZ23000AG | MAZ23300AG |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 36 V | 16 V | 30 V | 33 V |
| Tolerance | ±6% | ±6% | ±7% | ±6% |
| Power - Max | 1 W | 1 W | 1 W | 1 W |
| Impedance (Max) (Zzt) | 30 Ohms | 12 Ohms | 25 Ohms | 30 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 24 V | 5 µA @ 11 V | 2 µA @ 20 V | 2 µA @ 22 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA |
| Operating Temperature | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO41-A1 | DO41-A1 | DO41-A1 | DO41-A1 |
