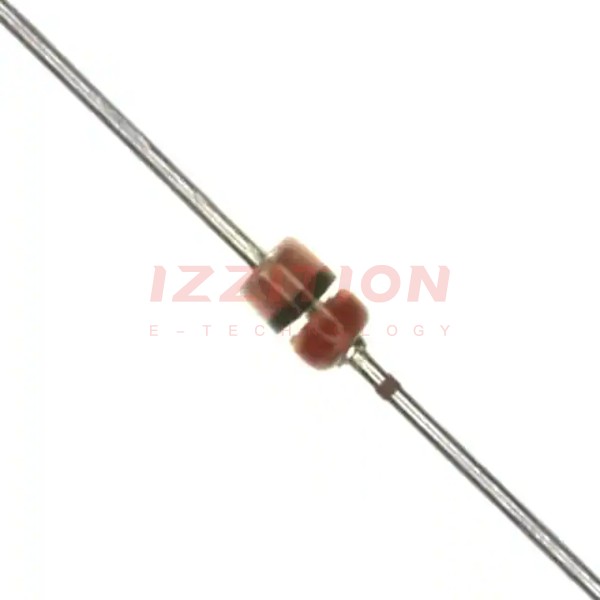

| Part Number | MAZ220000G | MAZ222000G | MAZ224000G | MAZ210000G |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 20 V | 22 V | 24 V | 10 V |
| Tolerance | ±6% | ±6% | ±6% | ±6% |
| Power - Max | 1 W | 1 W | 1 W | 1 W |
| Impedance (Max) (Zzt) | 15 Ohms | 20 Ohms | 20 Ohms | 6 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 14 V | 5 µA @ 15 V | 5 µA @ 16 V | 10 µA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA |
| Operating Temperature | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO41-A1 | DO41-A1 | DO41-A1 | DO41-A1 |
