Please send RFQ , we will respond immediately.

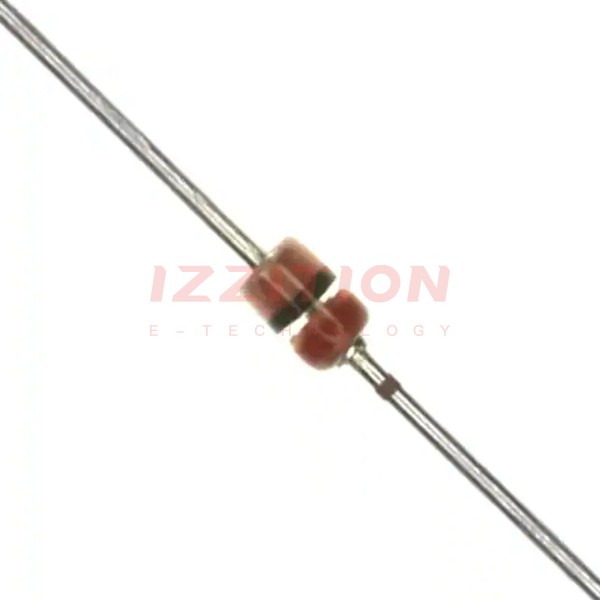

| Part Number | MAZ21300AG | MAZ21800AG | MAZ21600AG | MAZ23300AG | MAZ21200AG |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 13 V | 18 V | 16 V | 33 V | 12 V |
| Tolerance | ±6% | ±6% | ±6% | ±6% | ±5% |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W |
| Impedance (Max) (Zzt) | 10 Ohms | 15 Ohms | 12 Ohms | 30 Ohms | 8 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 9 V | 5 µA @ 12 V | 5 µA @ 11 V | 2 µA @ 22 V | 5 µA @ 8 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA |
| Operating Temperature | - | 200°C | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO41-A1 | DO41-A1 | DO41-A1 | DO41-A1 | DO41-A1 |
