Please send RFQ , we will respond immediately.

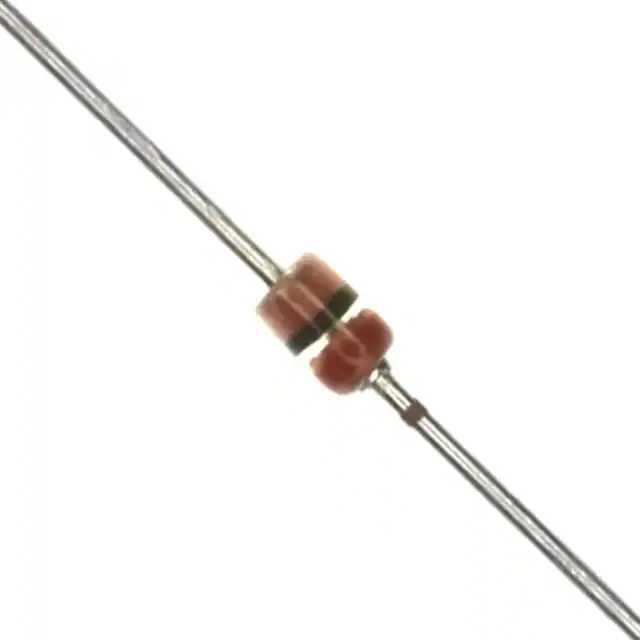

| Part Number | MAZ21200AG | MAZ21800AG | MAZ21300AG | MAZ21600AG |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 12 V | 18 V | 13 V | 16 V |
| Tolerance | ±5% | ±6% | ±6% | ±6% |
| Power - Max | 1 W | 1 W | 1 W | 1 W |
| Impedance (Max) (Zzt) | 8 Ohms | 15 Ohms | 10 Ohms | 12 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 8 V | 5 µA @ 12 V | 5 µA @ 9 V | 5 µA @ 11 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA |
| Operating Temperature | - | 200°C | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO41-A1 | DO41-A1 | DO41-A1 | DO41-A1 |
