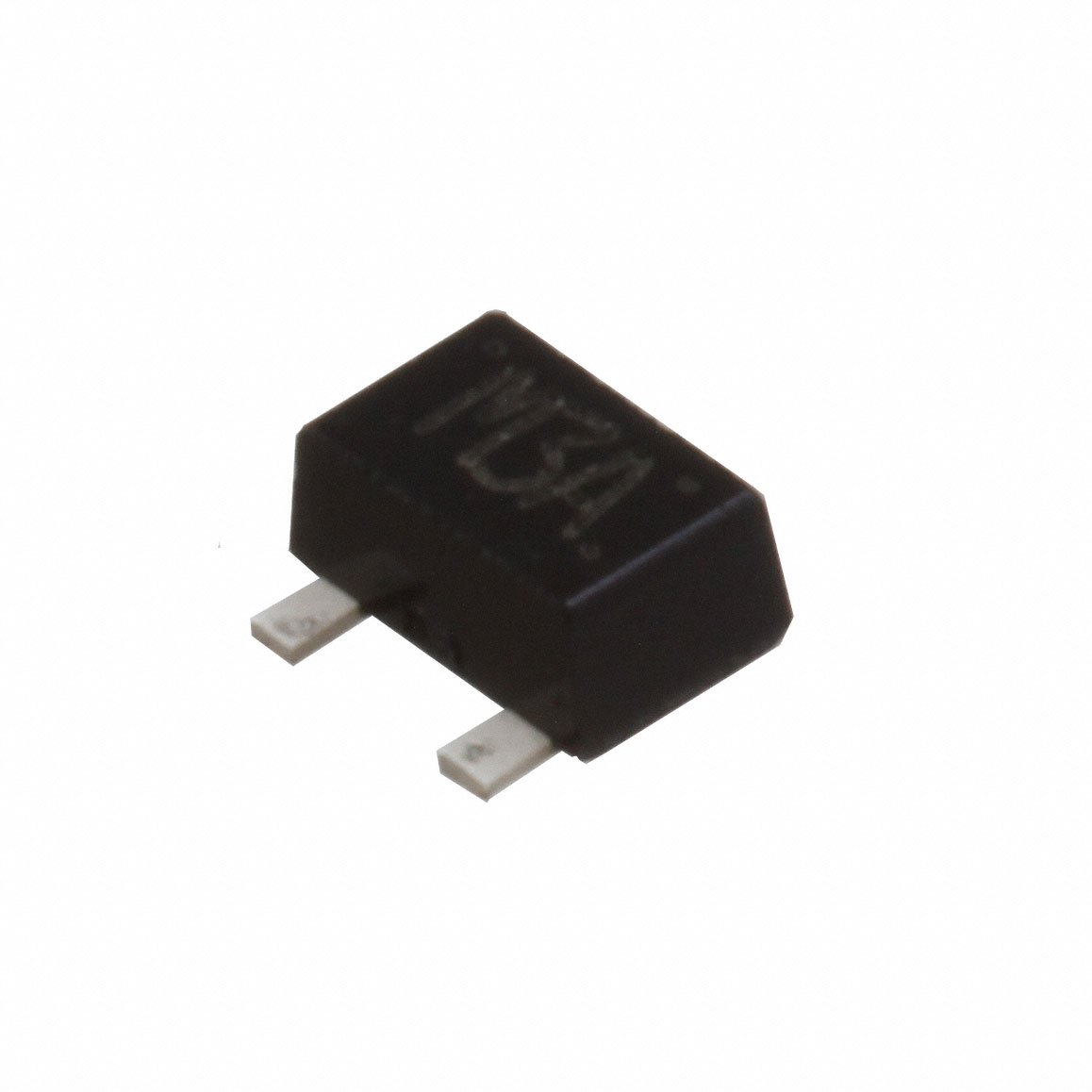

| Part Number | MA3X10000L | MA3X1000GL |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 200 V |
| Current - Average Rectified (Io) | 100mA | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 60 ns | 60 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V | 1 µA @ 200 V |
| Capacitance @ Vr, F | 3pF @ 0V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SC-85 | SC-85 |
| Supplier Device Package | SMini3-F1 | SMini3-F2 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) |
