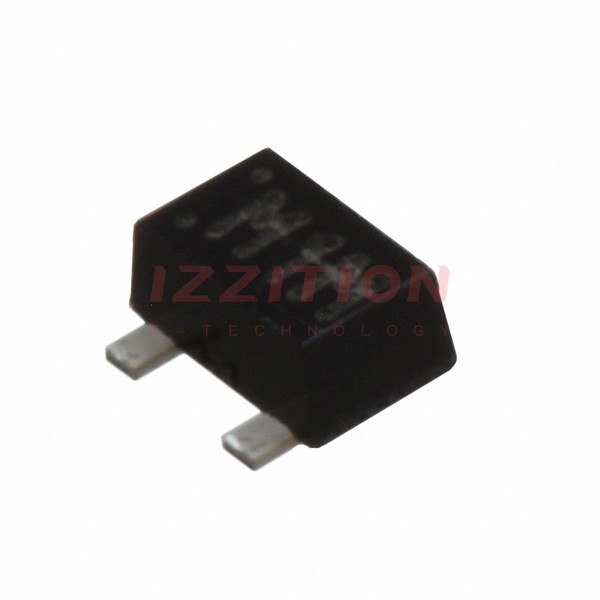

| Part Number | MA3J74400L | MA3J7440GL | MA3J74500L | MA3J74100L |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 200mA | 200mA | 30mA (DC) | 30mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 200 mA | 550 mV @ 200 mA | 1 V @ 30 mA | 1 V @ 30 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 3 ns | 3 ns | 1 ns | 1 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 30 V | 50 µA @ 30 V | 30 µA @ 30 V | 300 nA @ 30 V |
| Capacitance @ Vr, F | 30pF @ 0V, 1MHz | - | 1.5pF @ 1V, 1MHz | 1.5pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-85 | SC-85 | SC-85 | SC-85 |
| Supplier Device Package | SMini3-F1 | SMini3-F2 | SMini3-F1 | SMini3-F1 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 125°C (Max) | 125°C (Max) |
