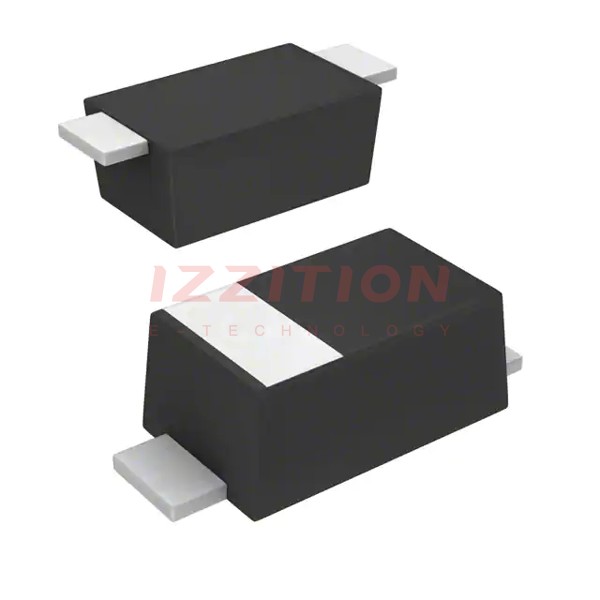

| Part Number | MA2YD2300L | MA2YD2600L | MA2YD3300L | MA2YD2800L | MA22D2300L | MA2YD2100L |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 25 V | 60 V | 30 V | 30 V | 25 V | 15 V |
| Current - Average Rectified (Io) | 1A | 800mA | 500mA | 1.5A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A | 580 mV @ 800 mA | 550 mV @ 500 mA | 490 mV @ 1.5 A | 530 mV @ 1 A | 400 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | 8 ns | 5 ns | 13 ns | - | 12 ns |
| Current - Reverse Leakage @ Vr | 40 µA @ 20 V | 100 µA @ 45 V | 50 µA @ 30 V | 100 µA @ 30 V | 40 µA @ 20 V | 1.5 mA @ 6 V |
| Capacitance @ Vr, F | - | 125pF @ 0V, 1MHz | 60pF @ 0V, 1MHz | 50pF @ 10V, 1MHz | 45pF @ 10V, 1MHz | 180pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Supplier Device Package | Mini2-F1 | Mini2-F1 | Mini2-F1 | Mini2-F1 | Mini2-F1 | Mini2-F1 |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) | 150°C (Max) | 150°C (Max) | 125°C (Max) |
