Please send RFQ , we will respond immediately.

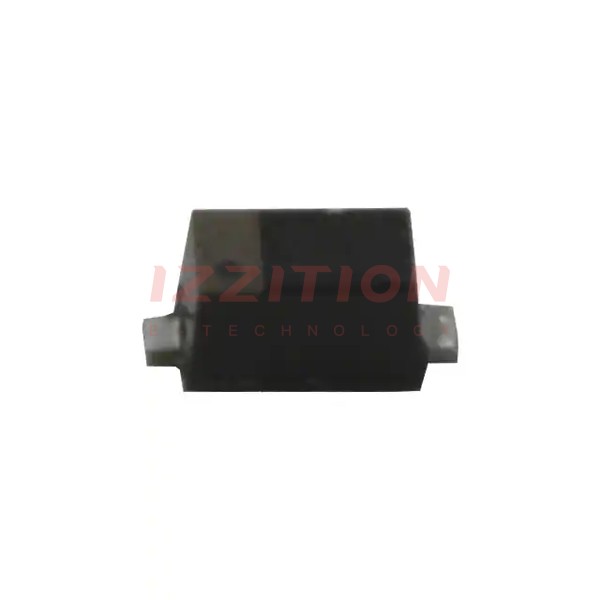

| Part Number | MA2SV0300L | MA2SV0400L | MA2SV0900L | MA2SV0500L | MA2SV0700L | MA27V0300L | MA2SV0100L | MA2SV0200L |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance @ Vr, F | 2.58pF @ 4V, 1MHz | 6.4pF @ 3V, 1MHz | 9.2pF @ 3V, 1MHz | 4.1pF @ 4V, 1MHz | 1.62pF @ 3V, 1MHz | 2.58pF @ 4V, 1MHz | 7pF @ 3V, 1MHz | 9pF @ 4V, 1MHz |
| Capacitance Ratio | 2.6 | - | 1.87 | 4.7 | 2.02 | 2.6 | 2.2 | 2.6 |
| Capacitance Ratio Condition | C1/C4 | - | C1/C3 | C1/C4 | C1/C3 | C1/C4 | C1/C3 | C1/C4 |
| Voltage - Peak Reverse (Max) | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V |
| Diode Type | Single | Single | Single | Single | Single | Single | Single | Single |
| Q @ Vr, F | - | - | - | - | - | - | - | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 125°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-80 | SC-80 | SC-80 | SC-80 | SC-80 | 2-SMD, Flat Lead | SC-80 | SC-80 |
| Supplier Device Package | SSMini2-F2 | SSMini2-F2 | SSMini2-F2 | SSMini2-F2 | SSMini2-F2 | SSSMini2-F1 | SSMini2-F2 | SSMini2-F2 |
