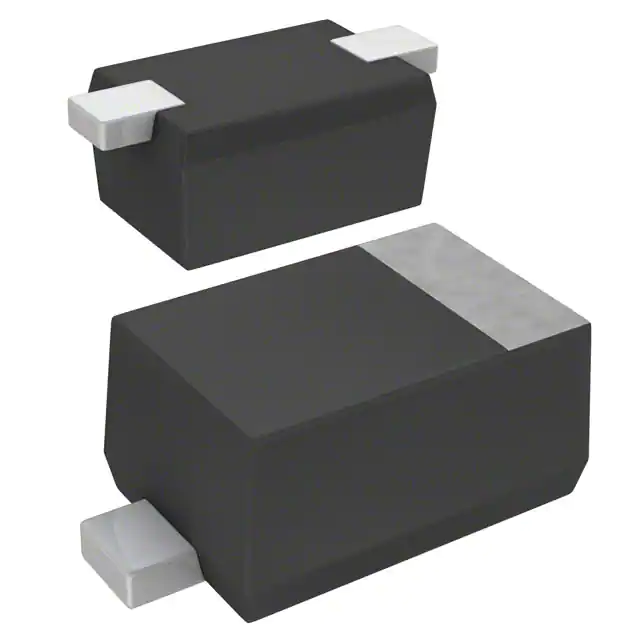

| Part Number | MA2SD3000L | MA2SD3100L | MA2SD3200L | MA2SD300GL | MA27D3000L | MA2SD1000L |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V | 30 V | 20 V |
| Current - Average Rectified (Io) | 100mA | 200mA | 200mA | 100mA | 100mA | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 580 mV @ 100 mA | 470 mV @ 200 mA | 560 mV @ 200 mA | 580 mV @ 100 mA | 580 mV @ 100 mA | 470 mV @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1 ns | 2 ns | 2 ns | 1 ns | 1 ns | 3 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 30 V | 200 µA @ 30 V | 5 µA @ 30 V | 2 µA @ 30 V | 2 µA @ 30 V | 20 µA @ 10 V |
| Capacitance @ Vr, F | 9pF @ 1V, 1MHz | 25pF @ 0V, 1MHz | 25pF @ 0V, 1MHz | 9pF @ 0V, 1MHz | 9pF @ 0V, 1MHz | 25pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | 2-SMD, Flat Lead | SC-79, SOD-523 |
| Supplier Device Package | SSMini2-F1 | SSMini2-F1 | SSMini2-F1 | SSMini2-F4 | SSSMini2-F2 | SSMini2-F1 |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) |
