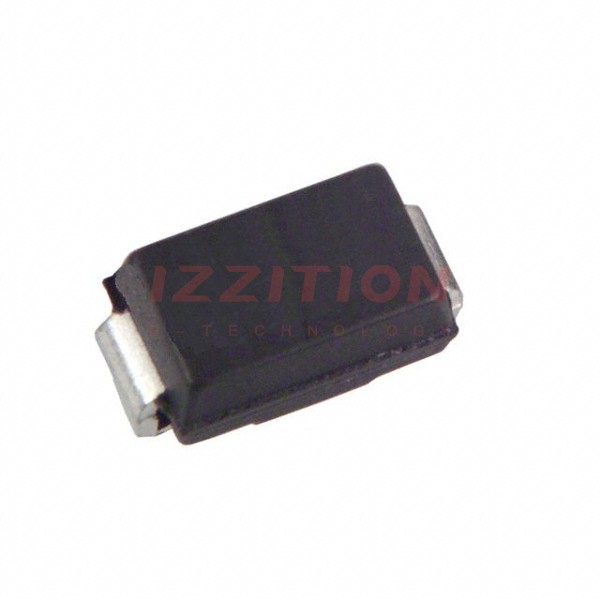

| Part Number | MA2Q73600L | MA2Q73800L | MA2Q73900L | MA2Q73500L |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 90 V | 30 V |
| Current - Average Rectified (Io) | 1A | 1.5A | 700mA | 1A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A | 550 mV @ 2 A | 800 mV @ 700 mA | 500 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns | 50 ns | 100 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 2 mA @ 40 V | 2 mA @ 40 V | 1 mA @ 90 V | 1 mA @ 30 V |
| Capacitance @ Vr, F | 50pF @ 10V, 1MHz | 70pF @ 10V, 1MHz | 50pF @ 10V, 1MHz | 50pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214BA | DO-214BA | DO-214BA | DO-214BA |
| Supplier Device Package | NMiniP2-J1 | NMiniP2-J1 | NMiniP2-J1 | NMiniP2-J1 |
| Operating Temperature - Junction | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
