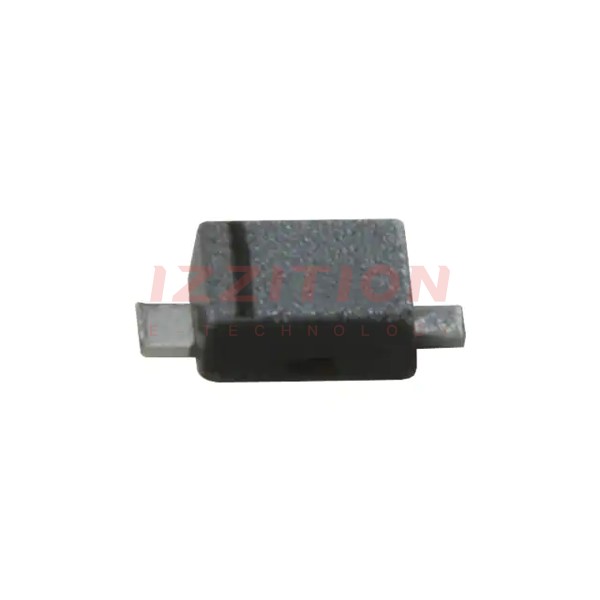

| Part Number | MA2J11200L | MA2J11300L | MA2J11400L | MA2J11500L | MA2J11600L | MA2J1120GL | MA2J11100L |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 80 V | 150 V | 200 V | 40 V | 40 V | 80 V |
| Current - Average Rectified (Io) | 200mA | 200mA | 200mA | 200mA | 100mA | 200mA | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 100 mA | 1.1 V @ 200 mA | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 10 ns | 10 ns | - | - | 100 ns | 10 ns | 3 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 35 V | 500 nA @ 75 V | 200 nA @ 150 V | 200 nA @ 200 V | 10 nA @ 40 V | 500 nA @ 35 V | 100 nA @ 75 V |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz | 4pF @ 0V, 1MHz | 4.5pF @ 0V, 1MHz | 4.5pF @ 0V, 1MHz | 2pF @ 6V, 1MHz | 4pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F |
| Supplier Device Package | SMini2-F1 | SMini2-F1 | SMini2-F1 | SMini2-F1 | SMini2-F1 | SMini2-F3 | SMini2-F1 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
