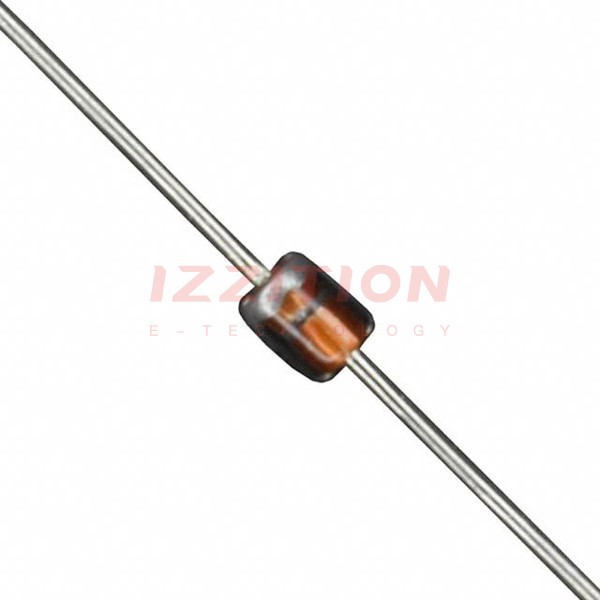

| Part Number | MA2C70000F | MA2C700A0F |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 15 V | 30 V |
| Current - Average Rectified (Io) | 30mA (DC) | 30mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 30 mA | 1 V @ 30 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1 ns | 1 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 15 V | 150 nA @ 30 V |
| Capacitance @ Vr, F | 1.3pF @ 1V, 1MHz | 1.3pF @ 1V, 1MHz |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial |
| Supplier Device Package | DO34-A1 | DO34-A1 |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) |
